Electric Vehicle Charging Station, 0-32A Adjustable, 7/11kW 220-240/380-400V Type 2 EV Car Charger, 7.5M TPE Charging Cable, IEC 62196-2, Single/Three Phase for Indoor/Outdoor Use, TUV Certified

Electric Vehicle Charging Station, 0-32A Adjustable, 7/11kW 220-240/380-400V Type 2 EV Car Charger, 7.5M TPE Charging Cable, IEC 62196-2, Single/Three Phase for Indoor/Outdoor Use, TUV Certified

€729,00 EUR
€729,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Intelligent Recognition Function: Our EV charging station type 2 can intelligently identify the user's home circuit. If the circuit can not withstand the charging power, it will automatically switch to the appropriate power charging. You won't have anything to worry about! Adjustment Unit: 1A, adjustment Range: 0-32A.
  • Above and Beyond TPU: Our charging cable is made of high-quality TPU, which is flexible even at -4?/-20?. The extra-long charging cable reaches as far as 7.5 m / 24.6 ft, meeting all your needs. Besides, the enclosure features sheet metal & acrylic material, with an IP66 protection level to withstand harsh weather conditions. No matter where you are, you will be ready for anything!
  • Security is Our Priority: Your security is our primary concern! That is why this smart EV charger is TUV certified. It is equipped with various protection features to keep users and equipment secure. Features include over voltage / under voltage / over charge / over current / emergency stop protection / lightning protection.
  • Real-Time Monitoring: This home vehicle charging station has a built-in intelligent App to directly monitor the charge status and power consumption. Designed with a 4.3-inch touchscreen to easily control the current / mode setting, order / password charging, changing password, and charging interface.
  • Everything You Need: We provide you with complete accessories to make installation effortless, including 2 x RFID cards(M1 card), 3 x M8*60 expansion screws, 1 x charging cable hook, and 1 x certificate of conformity. The electric car charger is compatible with most electric vehicles and plug-in hybrid vehicles that comply with the IEC 62196 standard. Get ready to charge up and hit the road again!
    • Model
    EV-A30-EU011B
    Voltage
    220-240V/380-400V, 50 Hz
    Power Output
    7 kW/ 11 kW
    Maximum Output Current
    32A
    IP Rating
    IP66
    Standard of Reference
    IEC 62196-2
    Charging Cable
    7.5 m / 24.6 ft(5*6?+1*0.5?, TPU)
    Input Cable
    1.5 m / 5 ft(5*6?, PVC)
    Protection Function
    Fire Protection, Over Current, Over Voltage, Under Voltage, Ground Protection, Over Temperature Protection, Self Monitoring and Recovery, Emergency Stop
    Liquid Crystal Screen
    4.3-inch Touchscreen
    Certification
    TUV
    Charging Mode
    Swipe Card Charging / APP Charging / Password Charging / Appointment Charging
    Charging Interface
    European Standard Charging Gun
    Enclosure Material
    Sheet Metal & Acrylic
    Operating Temperature
    -20 to 50? / -4 to 122
    Relative Humidity
    5%-95% No Condensation
    Mechanical Timing
    1-12 Hours

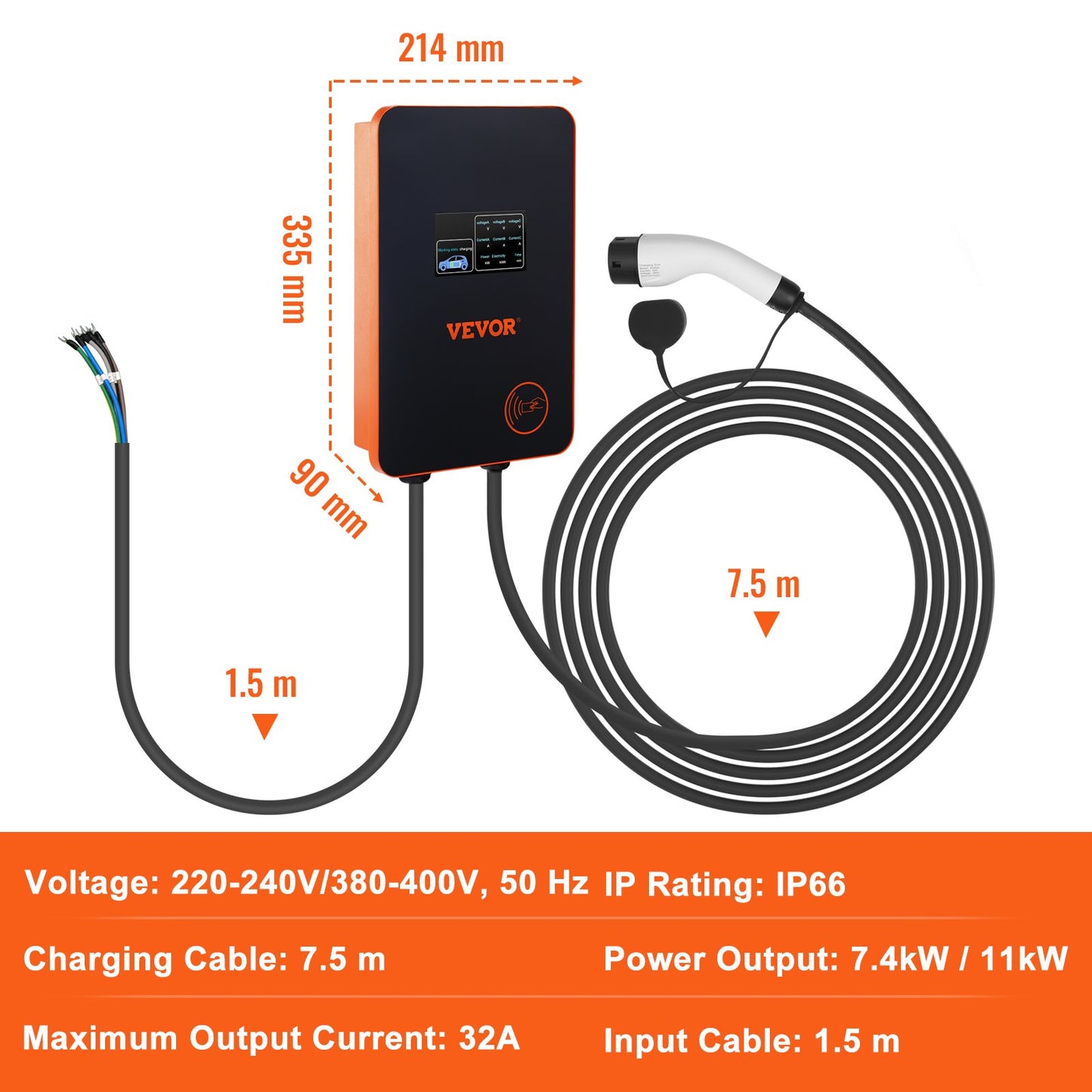

    Item Dimensions(H x W x D)
    335 x 214 x 90 mm / 13.19 x 8.43 x 3.54 in
    Packing Size(H x W x D)
    510 x 375 x 170 mm / 20.08 x 14.76 x 6.69 in
    Net Weight
    7.5 kg / 16.53 lbs
    Gross Weight
    8.5 kg / 18.74 lbs
    Manual
    Download Link
