2418 CNC Router Kit Wood Router Kit Basic GRBL Control DIY CNC Machine 3 Axis PCB PVC Milling Machine with Offline Controller 240x180x40mm

2418 CNC Router Kit Wood Router Kit Basic GRBL Control DIY CNC Machine 3 Axis PCB PVC Milling Machine with Offline Controller 240x180x40mm

Regular price €240,00 EUR
Regular price Sale price €240,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

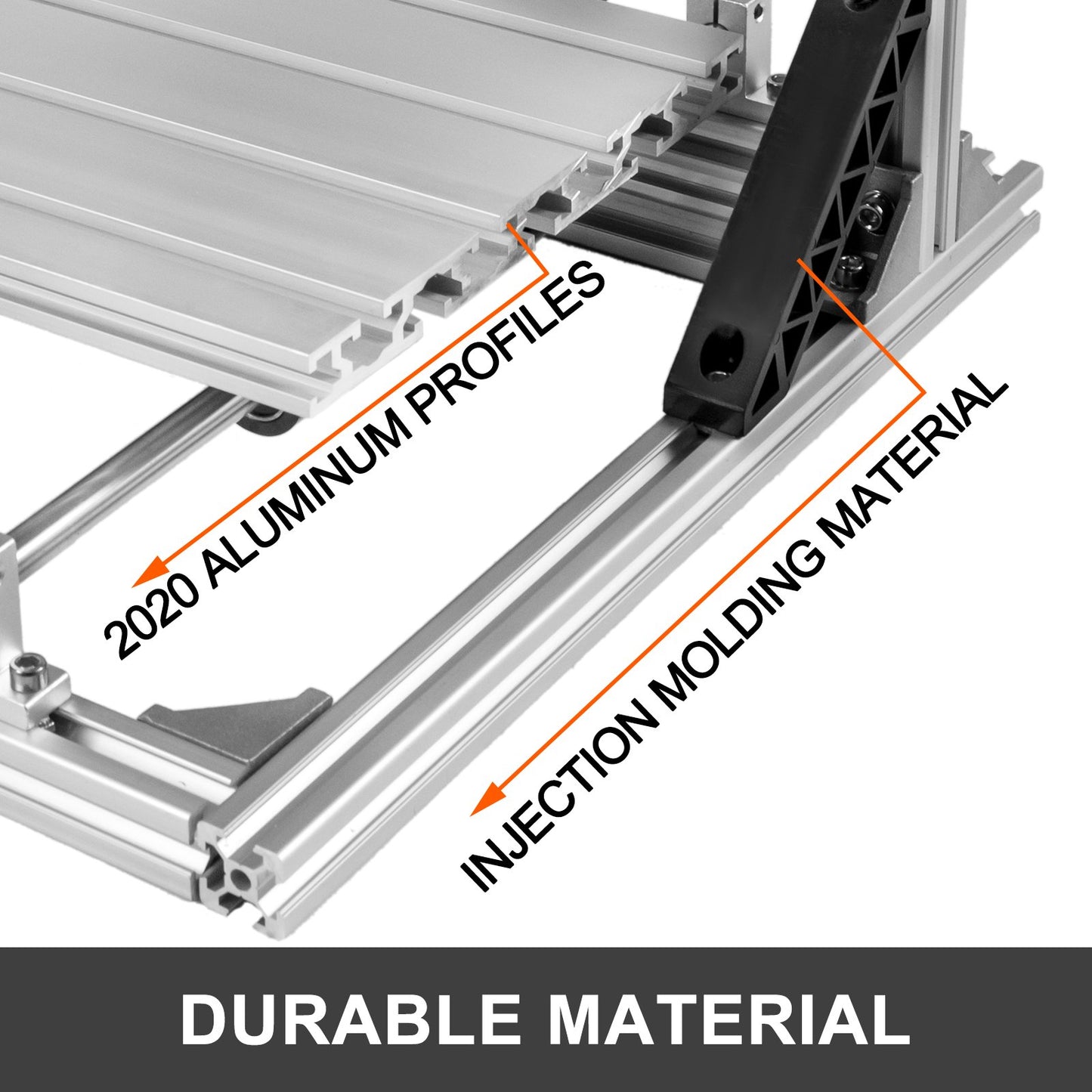

  • ?PREMIUM QUALITY?- With the external dimension of 33x34x24cm (13"x13.4"x9.5"), frames and fixed parts are made of 2020 aluminum profiles & black injection molding material. Working Travel: 24(X)x18(Y)x4(Z)cm (9.4"x7.1"x1.6").
  • ?EASE OF USE?- According to the instructions, the machine is easy to assemble. Supports windows XP SP3, win7, win8, win10, (32/64) and Linux system.

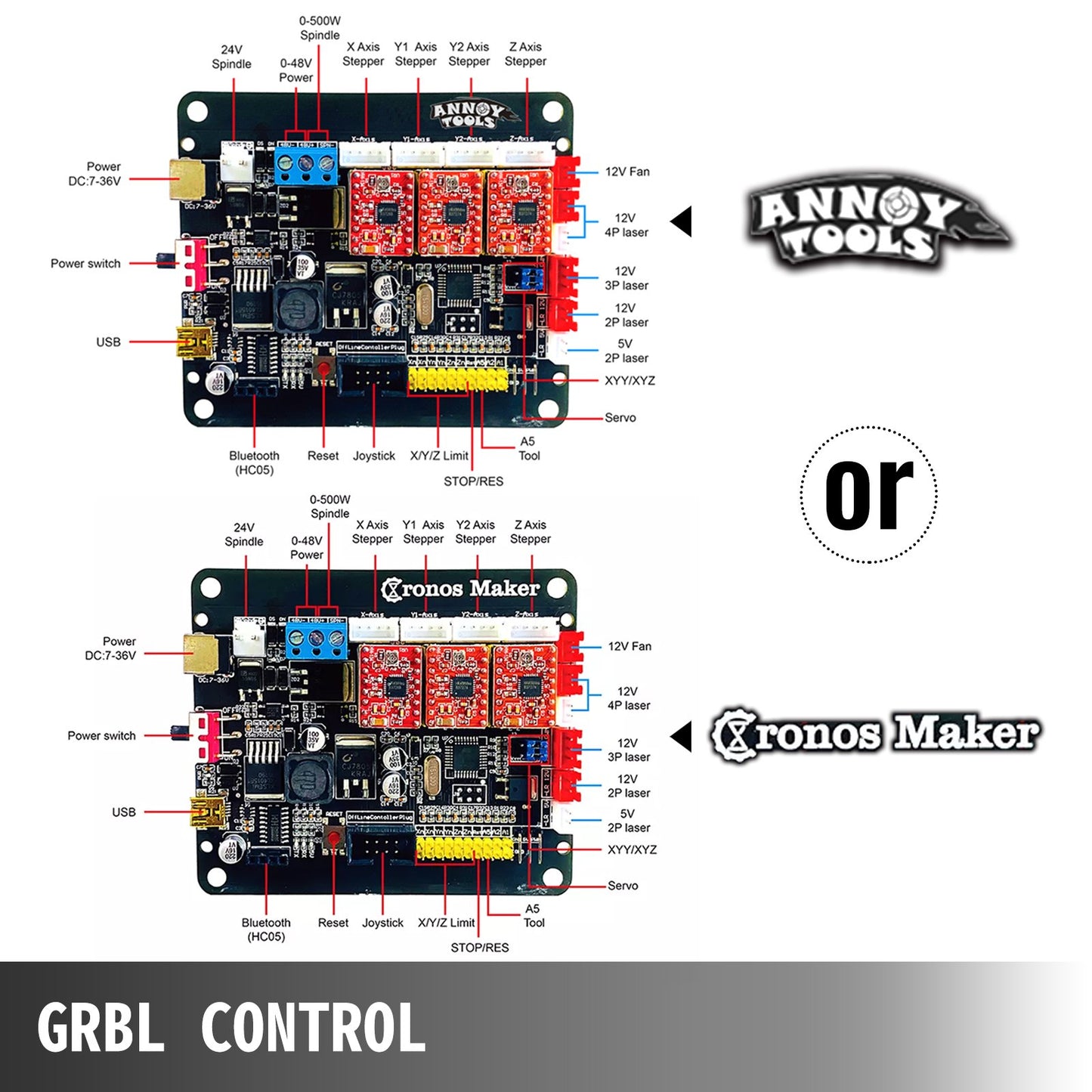

  • ?CONVENIENT CONTROL?- Simply connect to computers via USB port and controlled by GRBL. An offline controller is also included for easy remote control without computers.
  • ?HIGH PERFORMANCE?- Comes with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min.

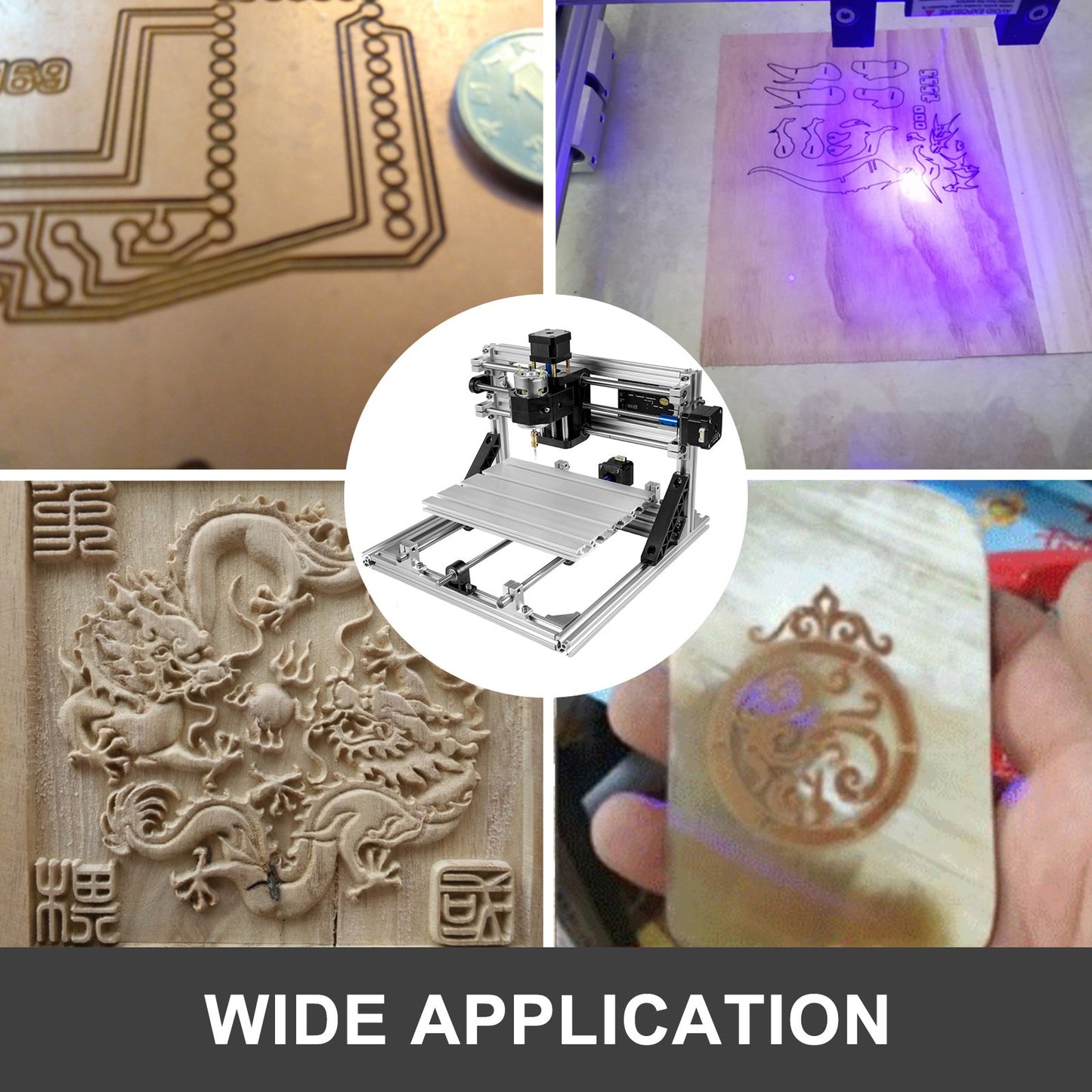

  • ?VERSATILE USE?- Used to engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, etc.
  • Effective Working Travel
    24(X)x18(Y)x4(Z)cm (9.4"x7.1"x1.6")
    Driving Units
    T8 Stainless Steel Screws
    Spindle Speed
    10000 rpm/min
    Input Power
    DC 24V
    Positional Accuracy
    0.08-0.1mm (0.003"-0.004")
    Gross Weight
    16.2 lbs (7.36 kg)
