3 Axis 2418 Grbl Control CNC Router Engraving Machine 240X180X40mm for Wood PVC Carving Molding Material (Basic)

Name: 3 Axis 2418 Grbl Control CNC Router Engraving Machine 240X180X40mm for Wood PVC Carving Molding Material (Basic)
Brand: DIY Ireland
Price: 232.0 EUR
Availability: InStock

€232,00 EUR

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

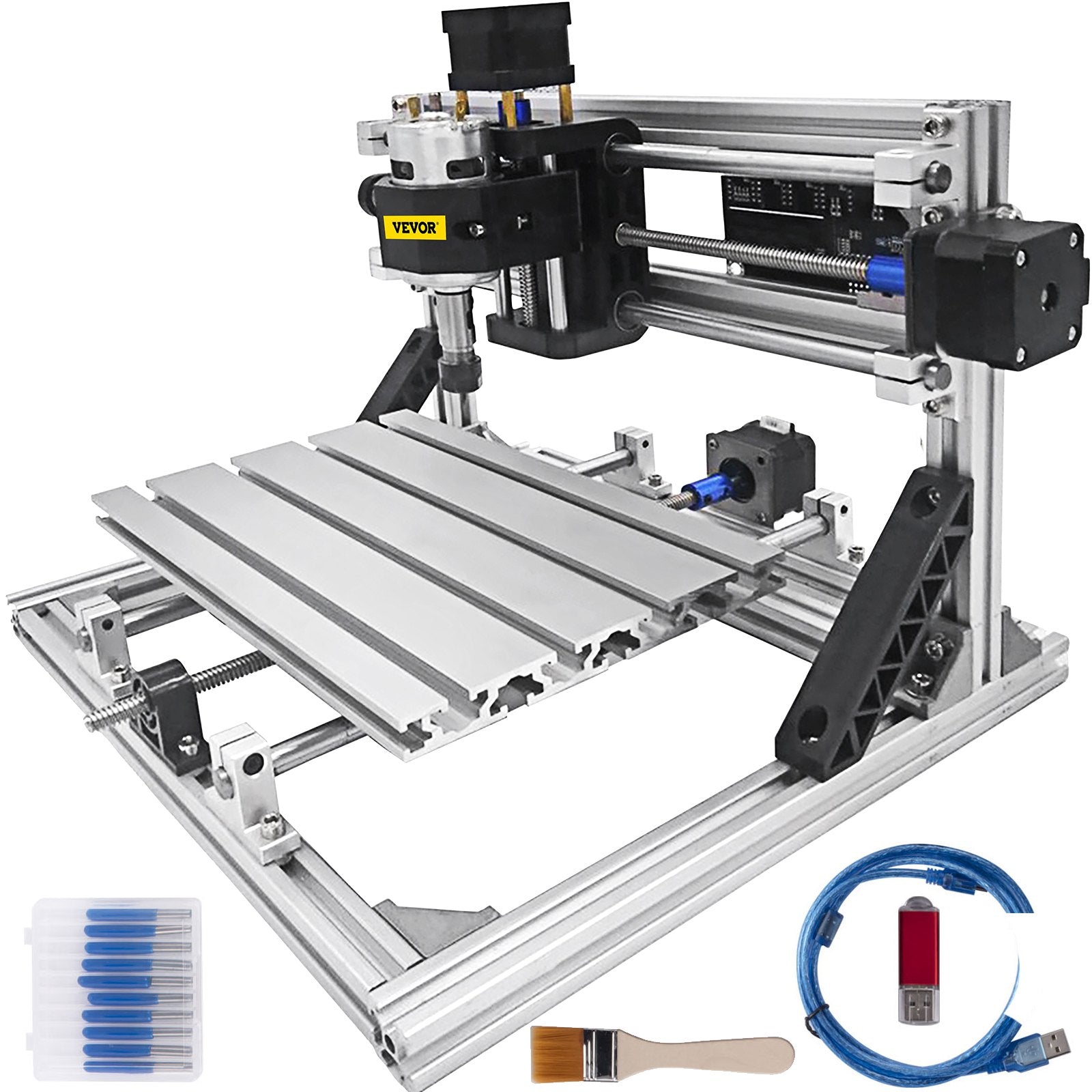

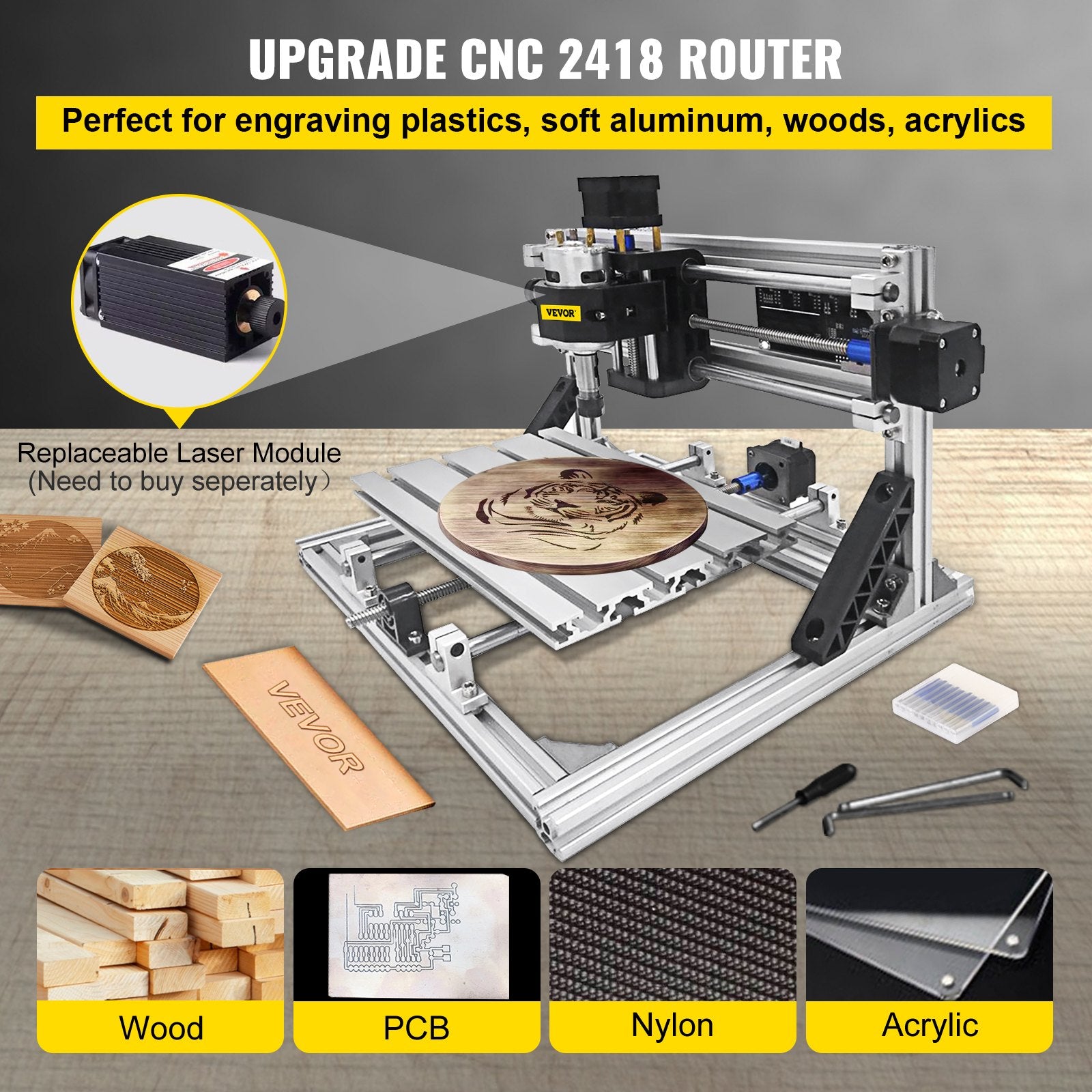

CNC 2418 Router Machine: CNC 2418 PRO is an upgraded version of 2418 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more. This product does not include a laser head and can be purchased by yourself.

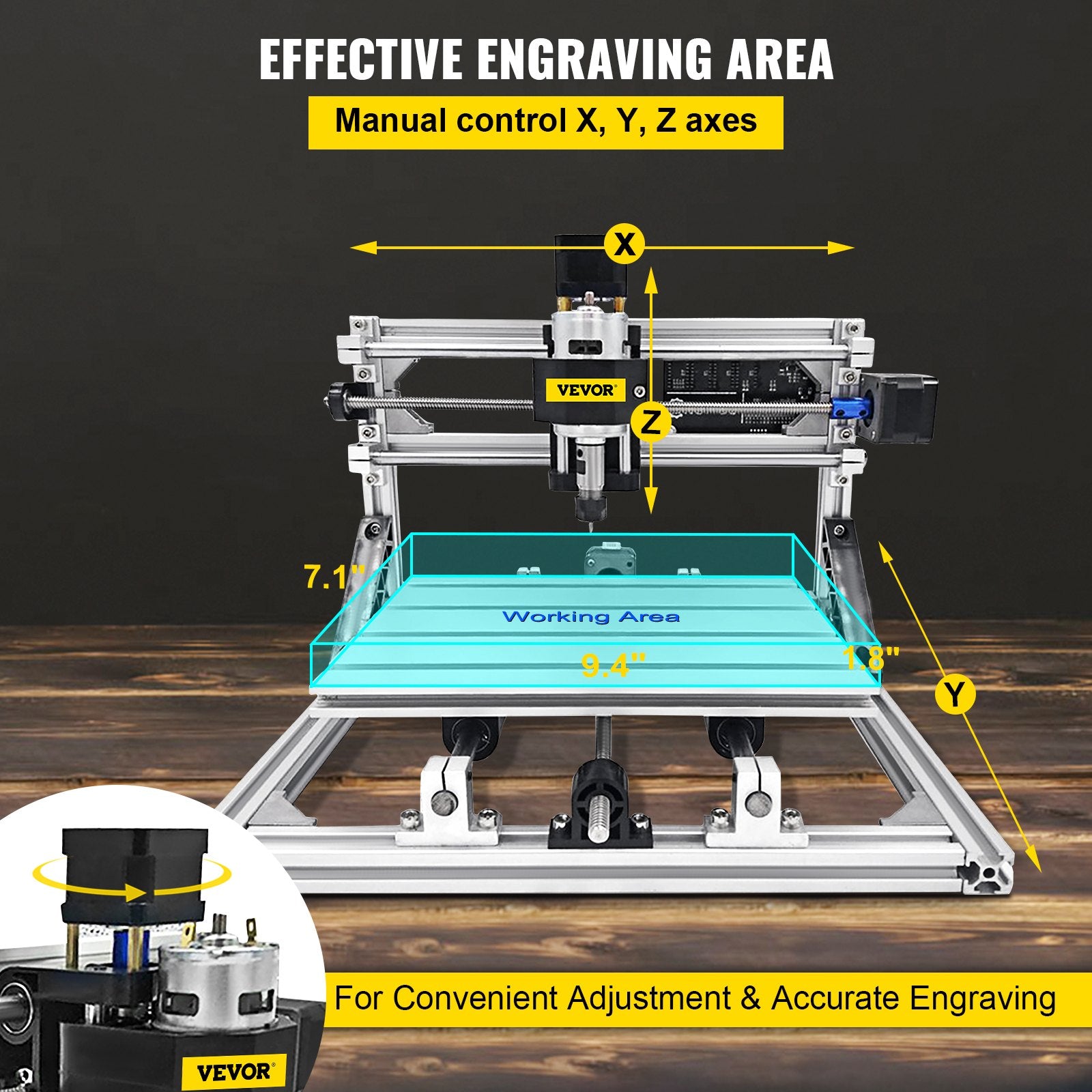

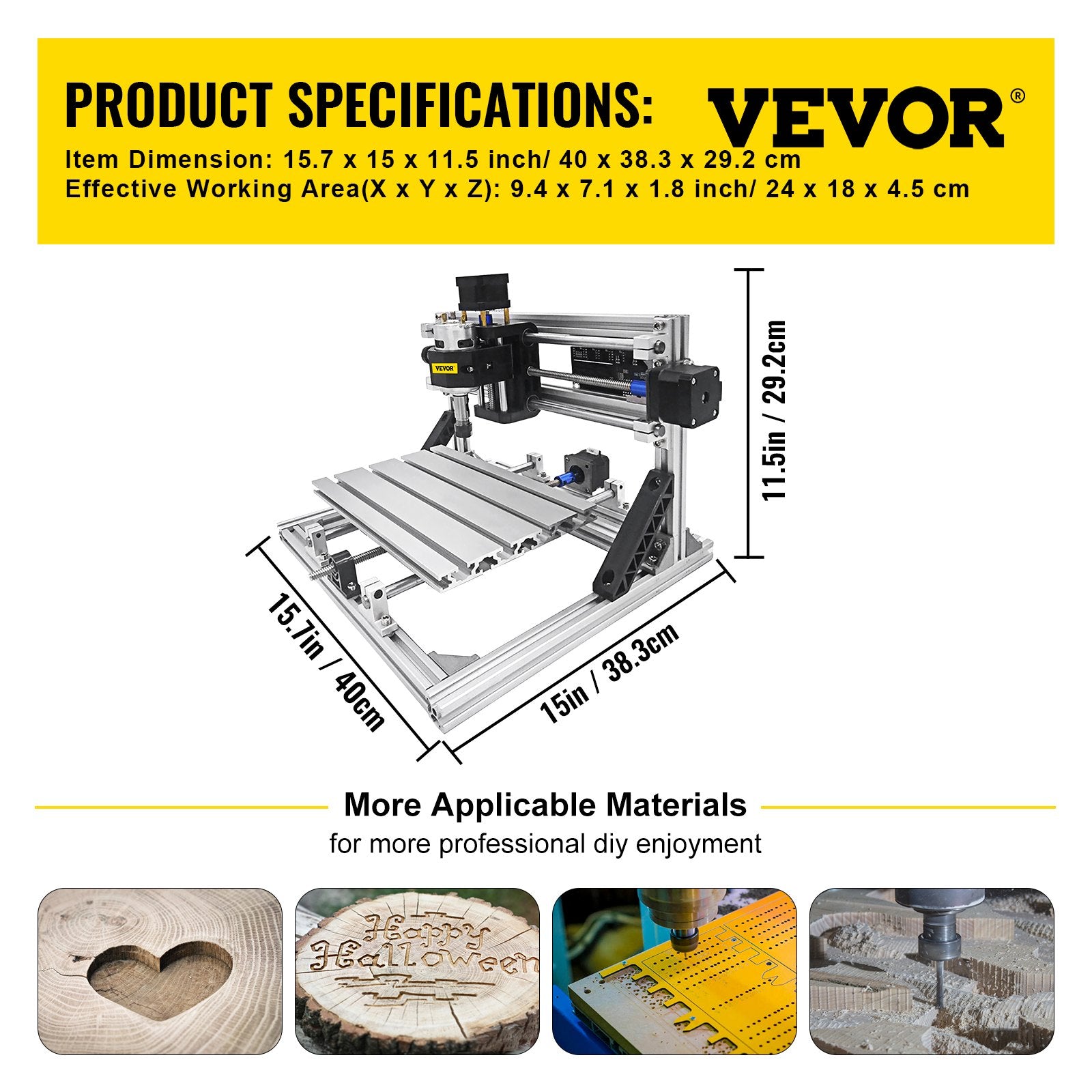

Large Working Area: The effective engraving area of this engraving machine is 9.4(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

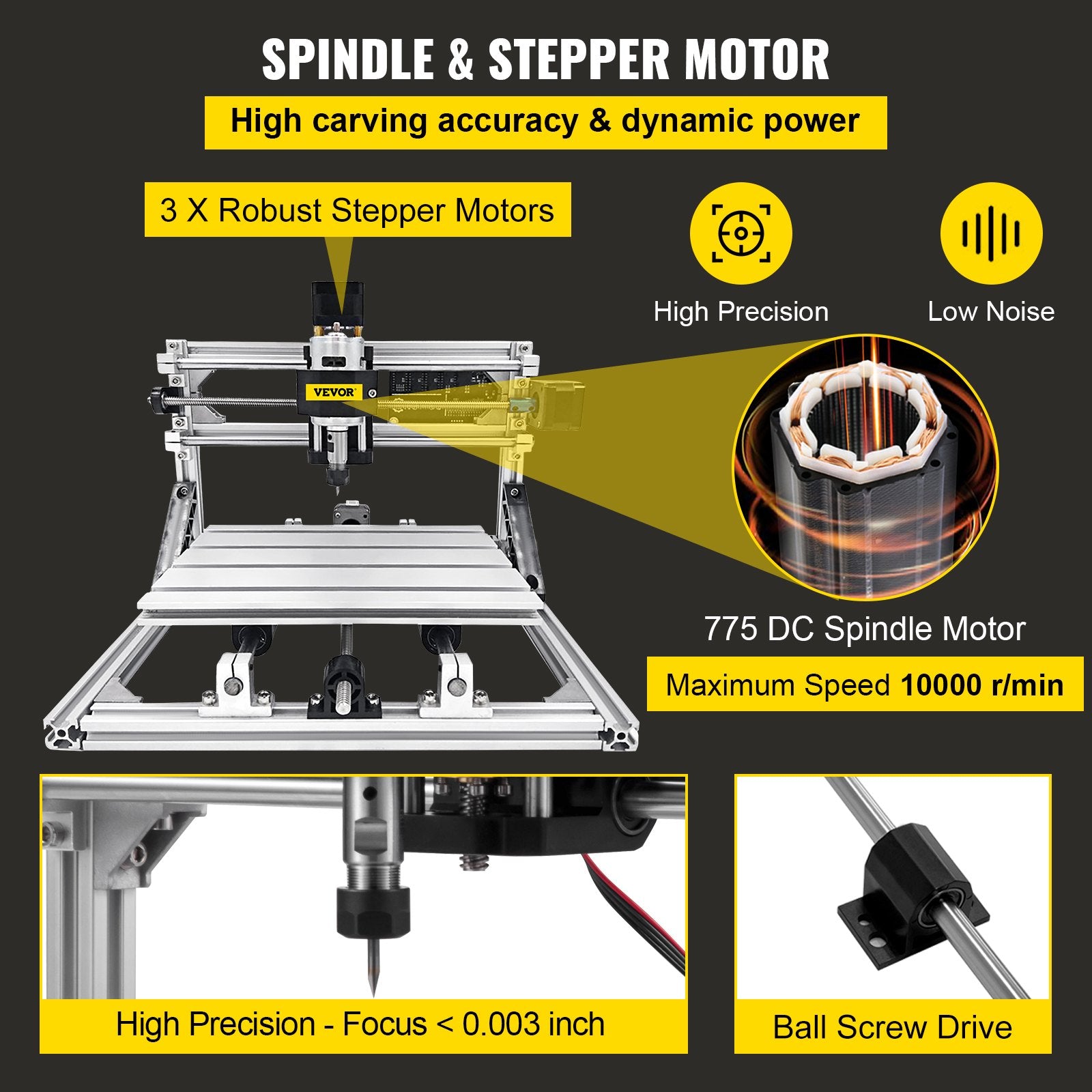

Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10,000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import .nc/.txt/.tape/.gcode format files for engraving.

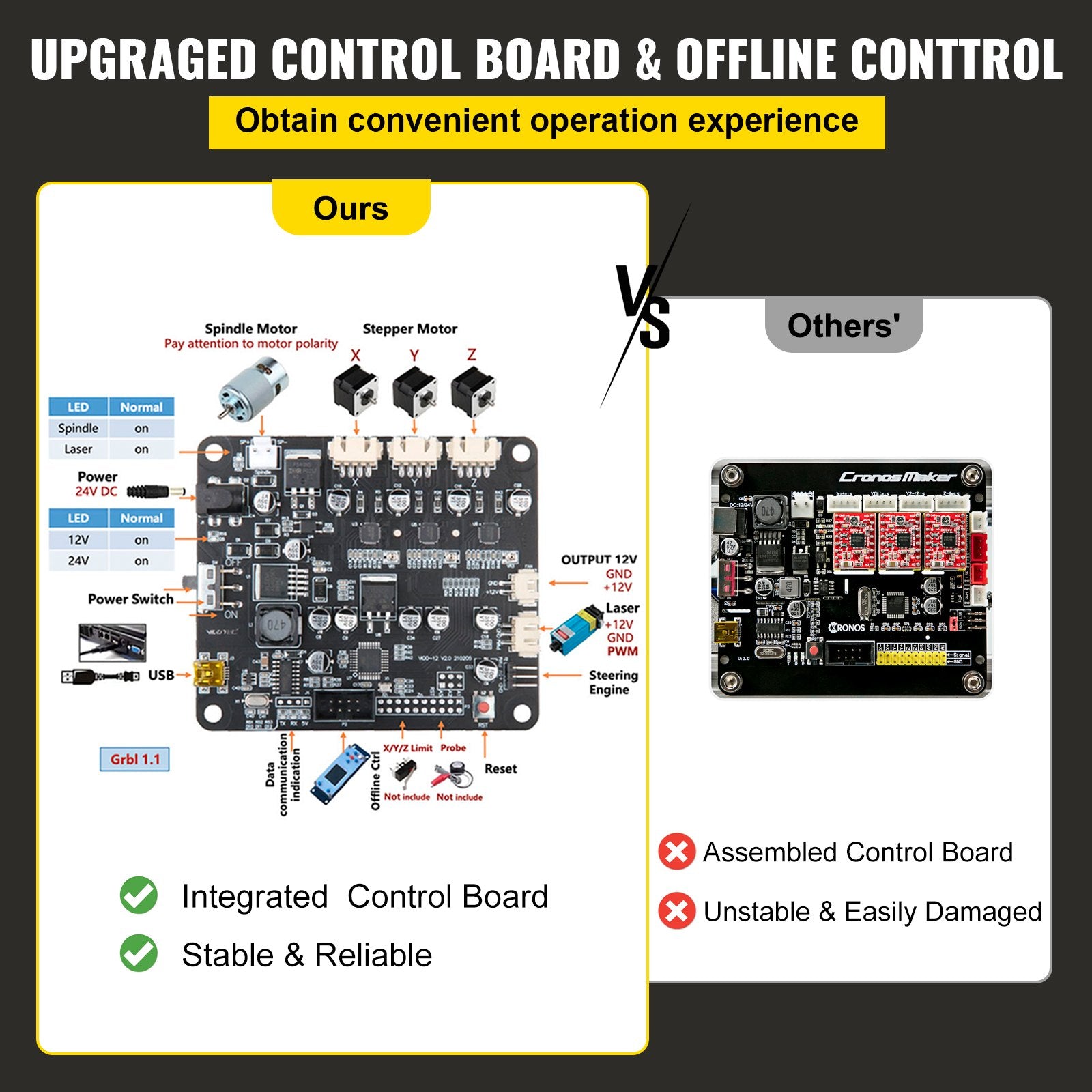

Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

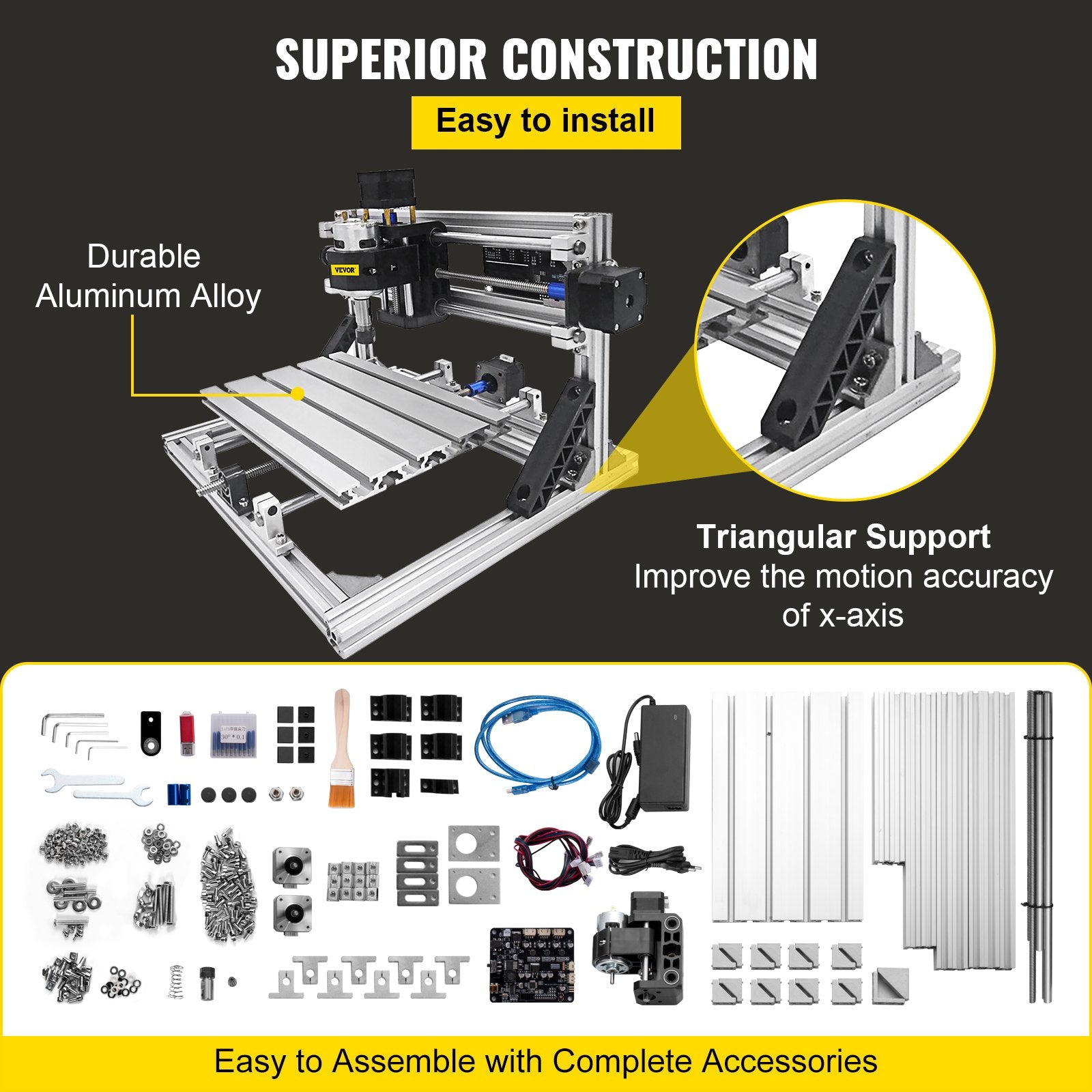

Sturdy Material: The frame is mainly made of aluminum alloy materials, with high strength and precision. The triangular side support can improve the motion accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
