6L Tank Water Chiller CW-5200DG Thermolysis Industrial Water Chiller Water Cooling Chiller for 130 150W CO2 Glass Laser Tube Cooler

6L Tank Water Chiller CW-5200DG Thermolysis Industrial Water Chiller Water Cooling Chiller for 130 150W CO2 Glass Laser Tube Cooler

€715,00 EUR
€715,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Product Parameter: The CW-5200DG industrial water cooler chiller is 7L capacity, 10L/max.flow, Precision: ±32.54?/0.3?, Cooling capacity: 1749W, 110V Voltage, and 60HZ Frequency.

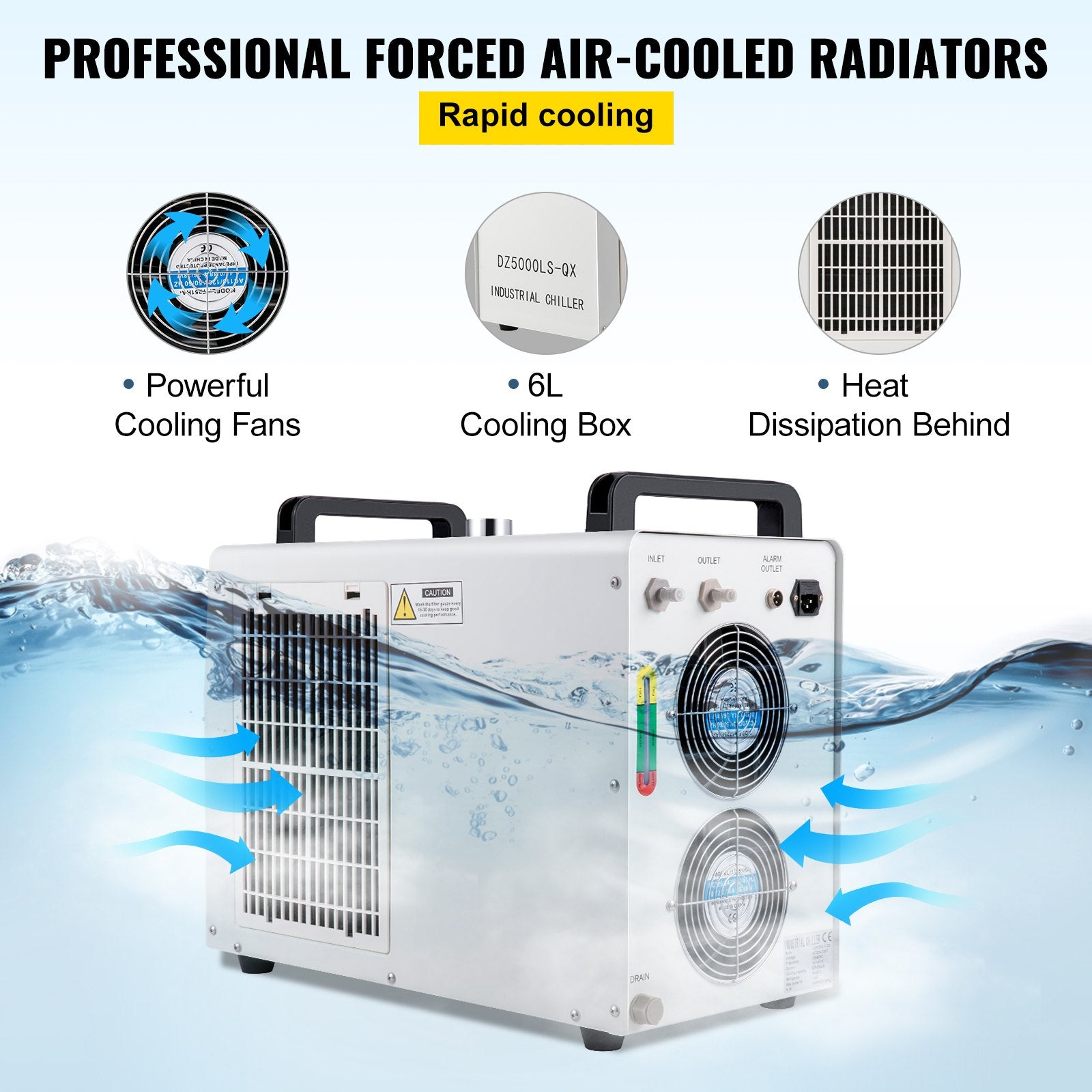

  • Efficient Cooling Fan: The water cooler chiller has two professional forced air-cooled radiators, high heat dissipating capacity, and not easy to be blocked. High-speed fans inside quickly take away the heat. And the CW-5200's water inlet and outlet ports are made of anti-corrosive brass to keep from any leakage problems and extend long service life.

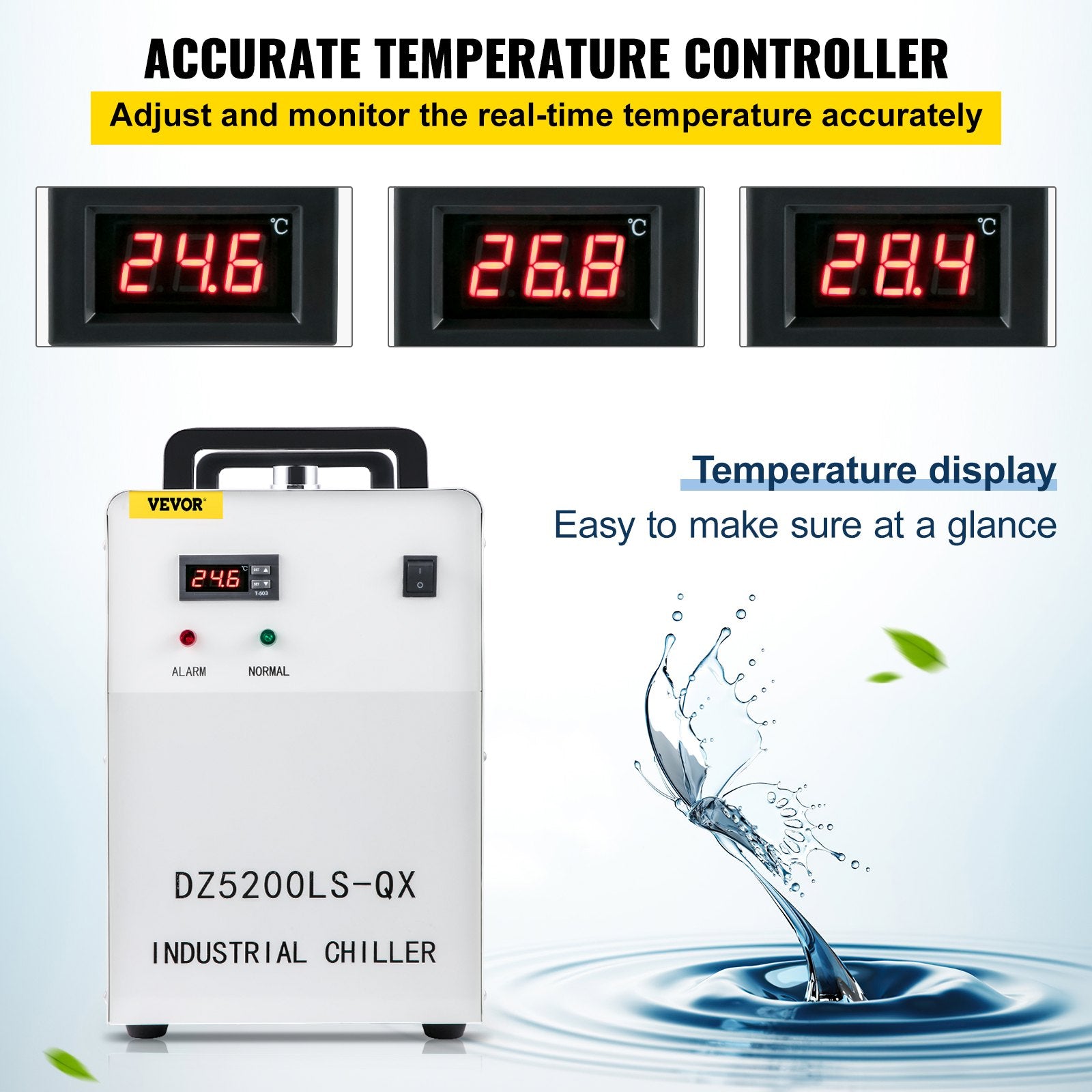

  • Constant & Intelligent Temperature Mode: CW-5200 series industrial chiller can be used to cool high-power lasers. Two working temperature modes are constant temperature and intelligent temperature adjustment. The smart temperature control mode can be adjusted to the corresponding water temperature as the temperature changes, and the water temperature can be automatically adjusted according to the season.

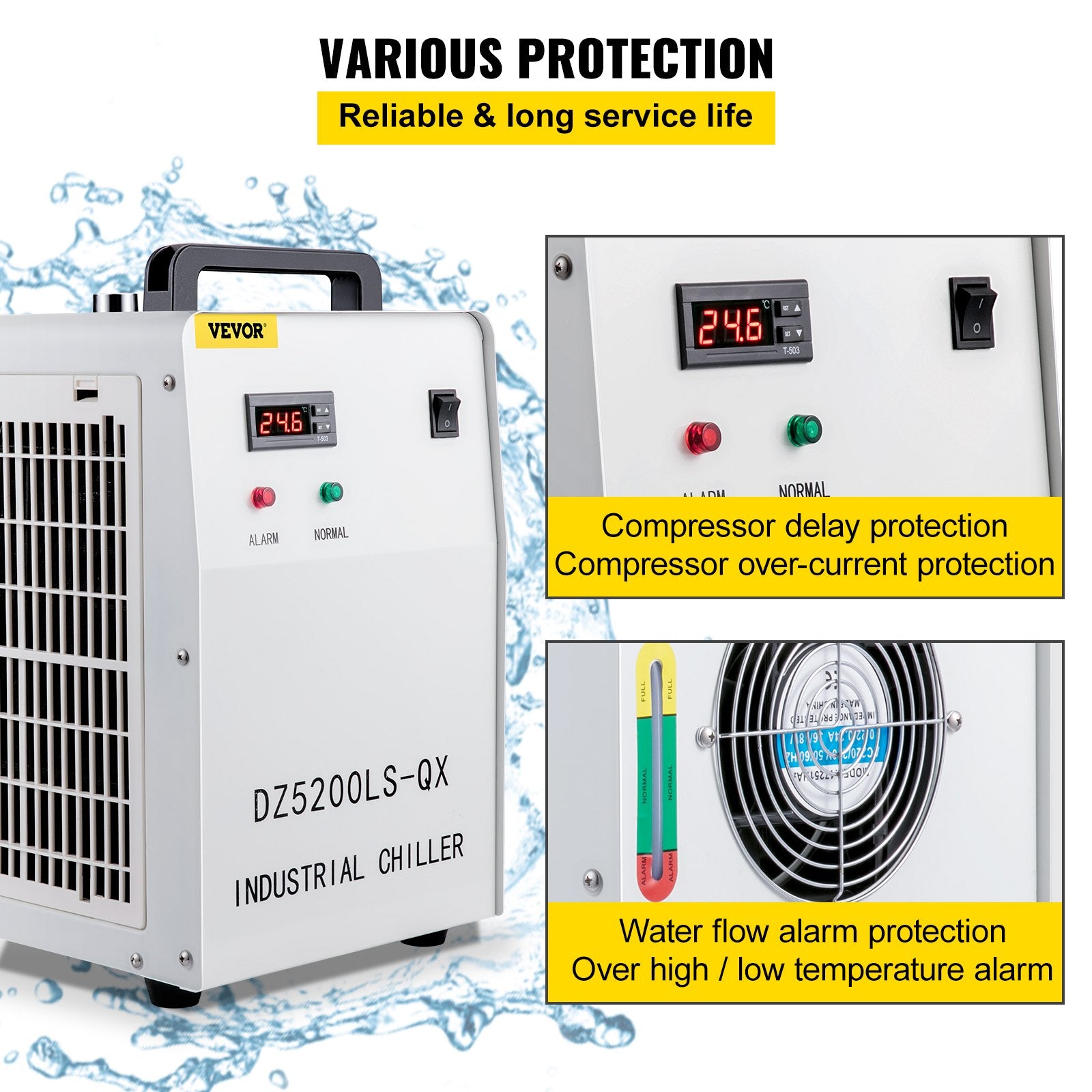

  • Various Alarm Functions: This professional industrial chiller has multiple warning protection mechanisms such as water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection.
  • Multiple Application: CW-5200 Series professional industrial water cooler machine is suitable for small water-cooled cooling devices requested machinery. The Industrial Water Chiller has a patent Certificate, CE, and ROHS Certificate. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine. Emitting rate higher than 60%.
    • Model
    CW-5200DG
    Voltage
    220V
    Frequence
    60HZ
    Current
    4.5~6.5A
    Tank Capacity
    7L
    Compressor Power
    0.68KW, 0.93HP
    Refrigerating Capacity
    5186Btu/h, 1.52KW, 1307Kcal/h
    Refrigerant
    R-22 / R-134a / R-410a
    Refrigerant Charge
    12.3oz / 350g
    Precision
    ±32.54? / 0.3?
    Reducer
    Capillary
    Pump Power
    55W
    Maximum Flow
    10L/min
    Inlet and outlet
    External?10mm barbed connector
    Maximum Pumping Lift
    11 Yards / 10M
    Inlet and Outlet
    External ?0.4in / 10mm brass connector
    Packing Dimensions
    28.3* 17.3 *24.4in / 720*440*620mm (L*W*H)

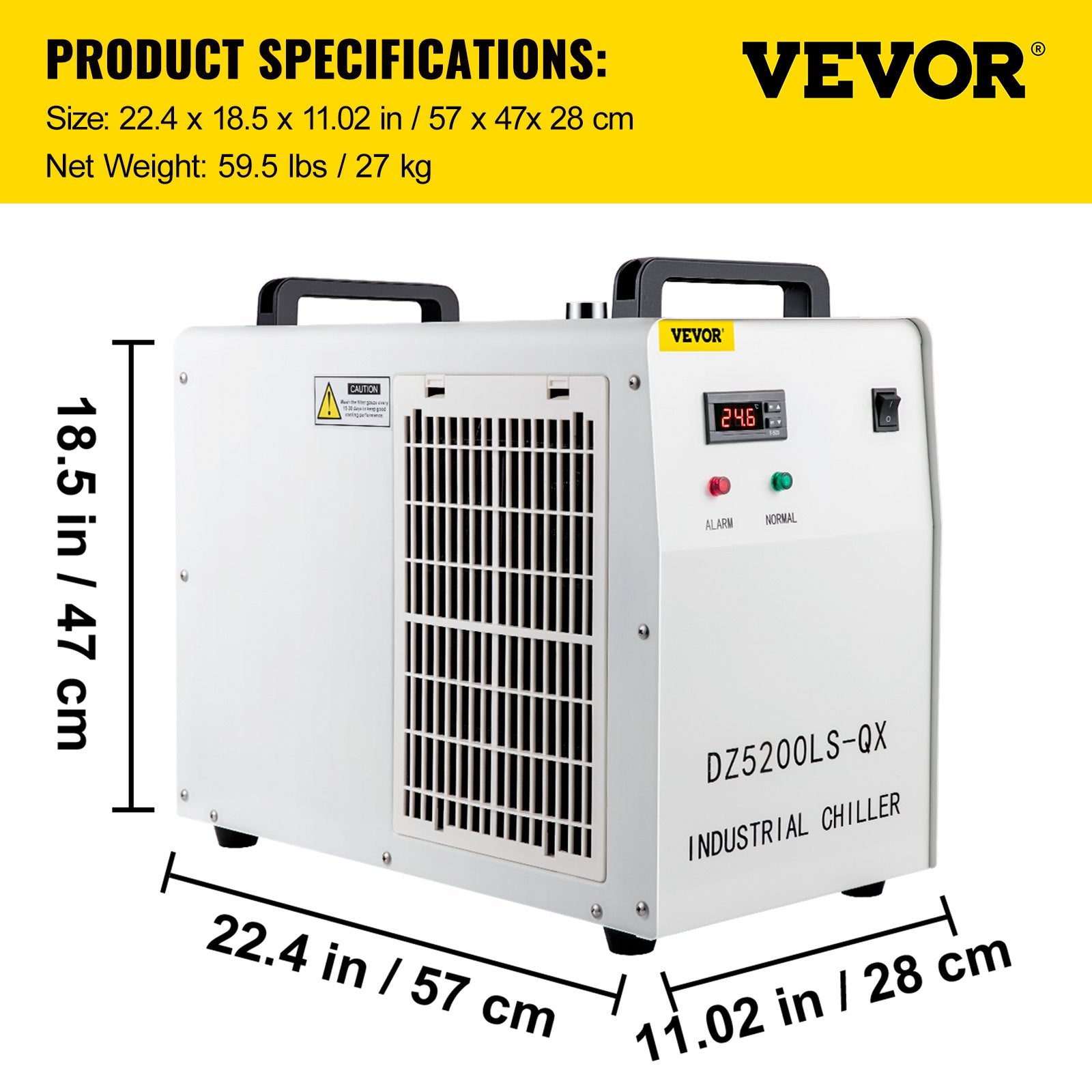

    Prosuct Size
    22.83*11.41*18.50in / 580mm*290*470mm (L*W*H)
    Protection
    Over current protection for compressor, flow alarm, over temperature alarm
    Manual
    Download Link
