CNC 3018 Pro 300×180×45mm CNC Machine GRBL Control Mini Engraver with Offline Controller 3 Axis Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

CNC 3018 Pro 300×180×45mm CNC Machine GRBL Control Mini Engraver with Offline Controller 3 Axis Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

€250,00 EUR
€250,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

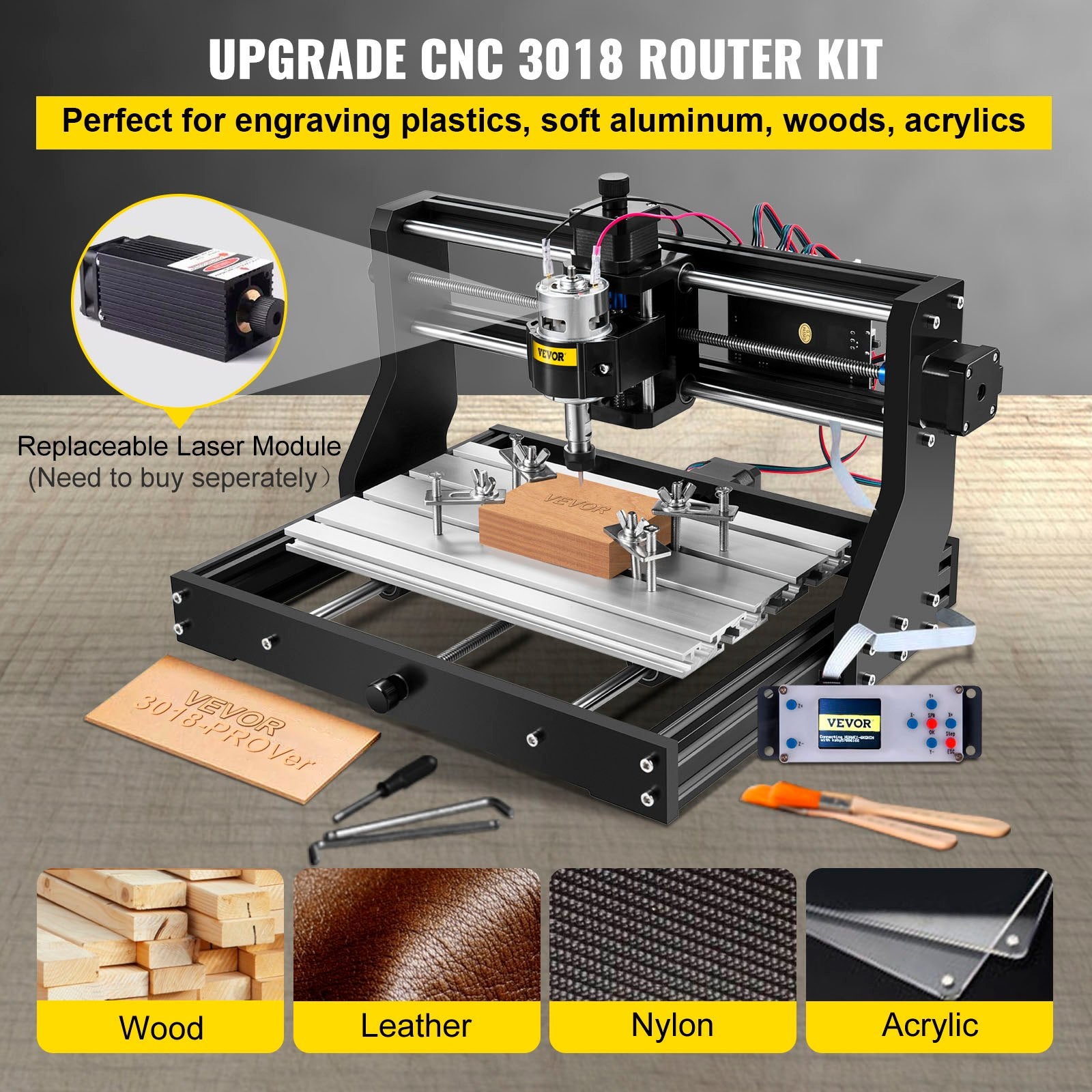

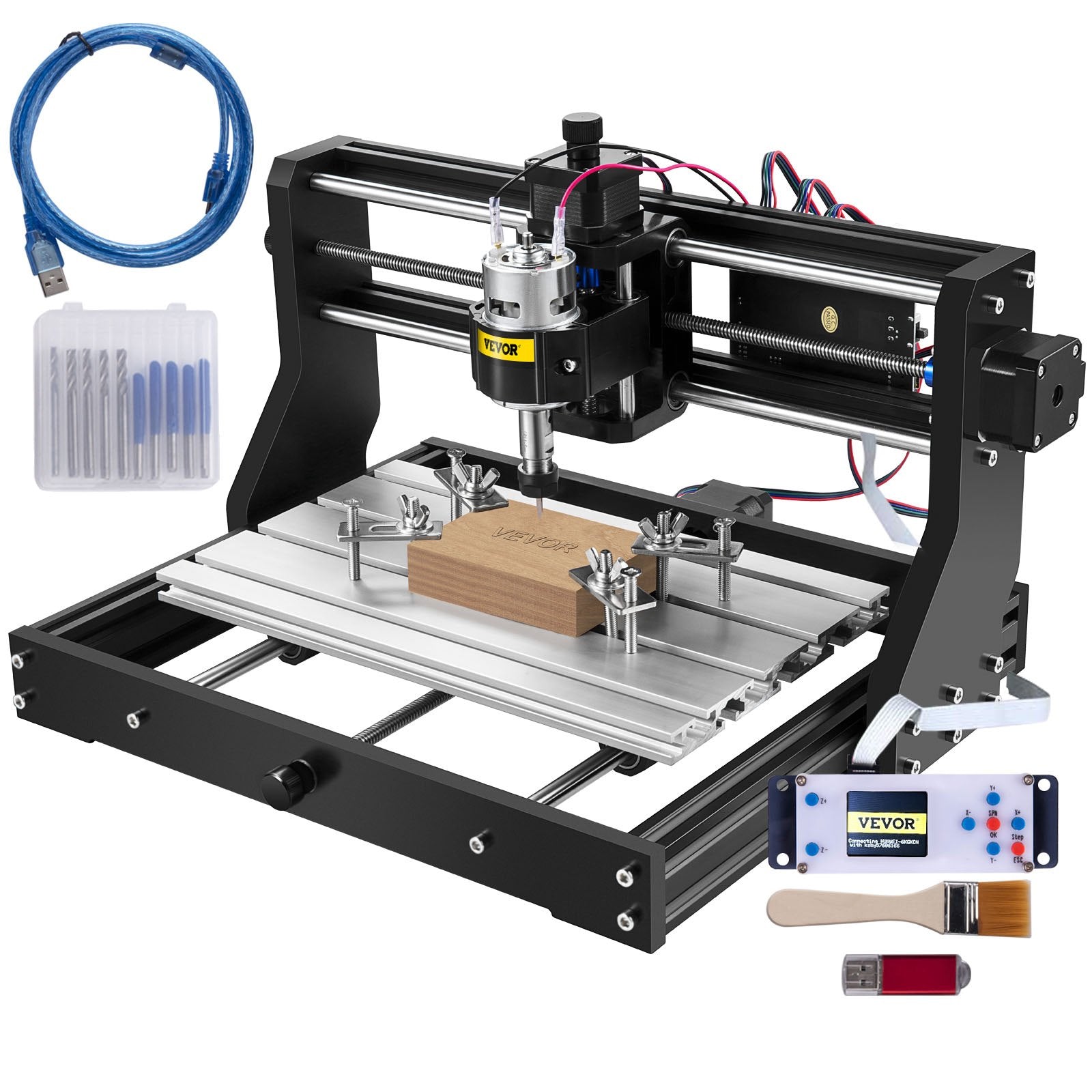

  • CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more. This product does not include a laser head and can be purchased by yourself.

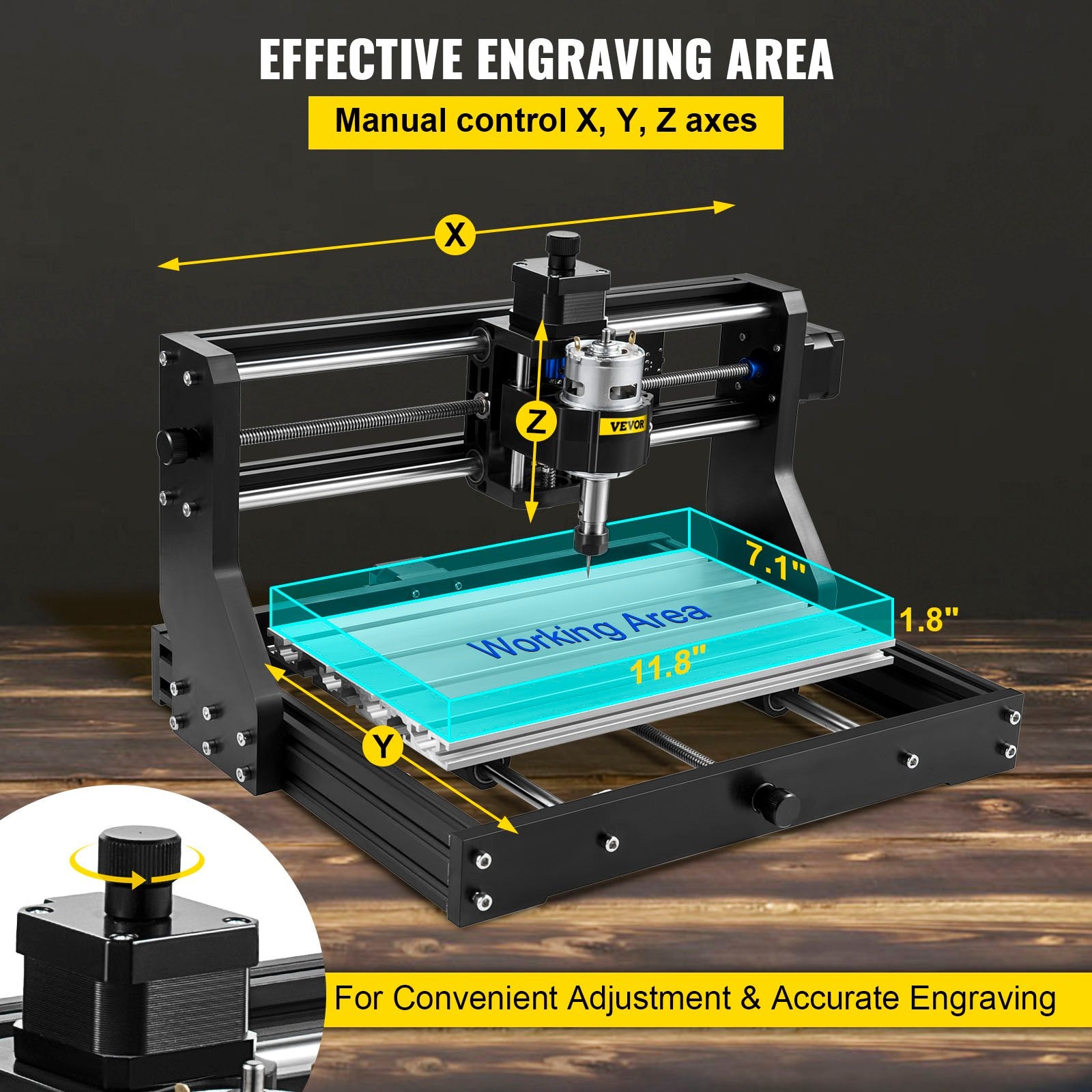

  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

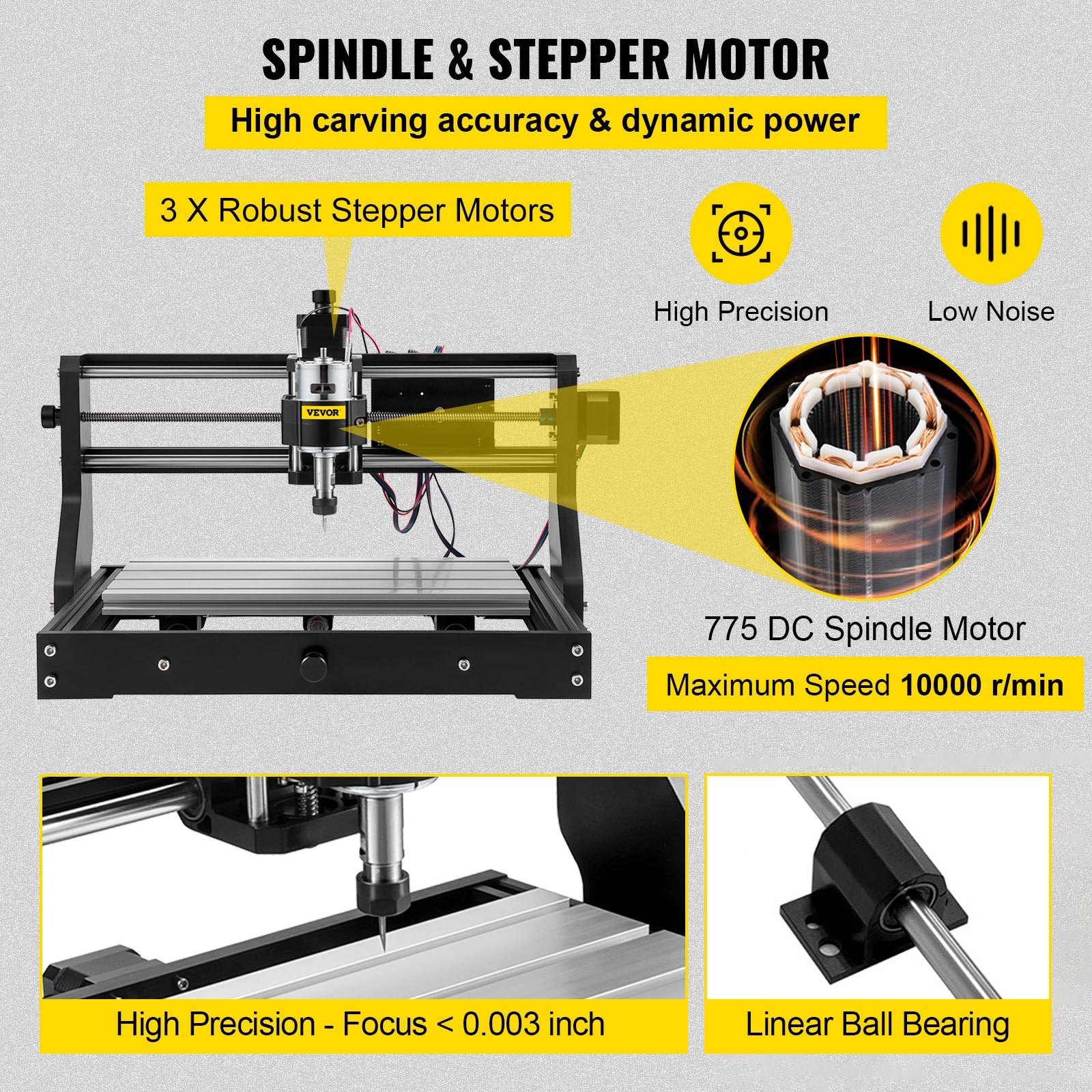

  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10,000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import .nc/.txt/.tape/.gcode format files for engraving.

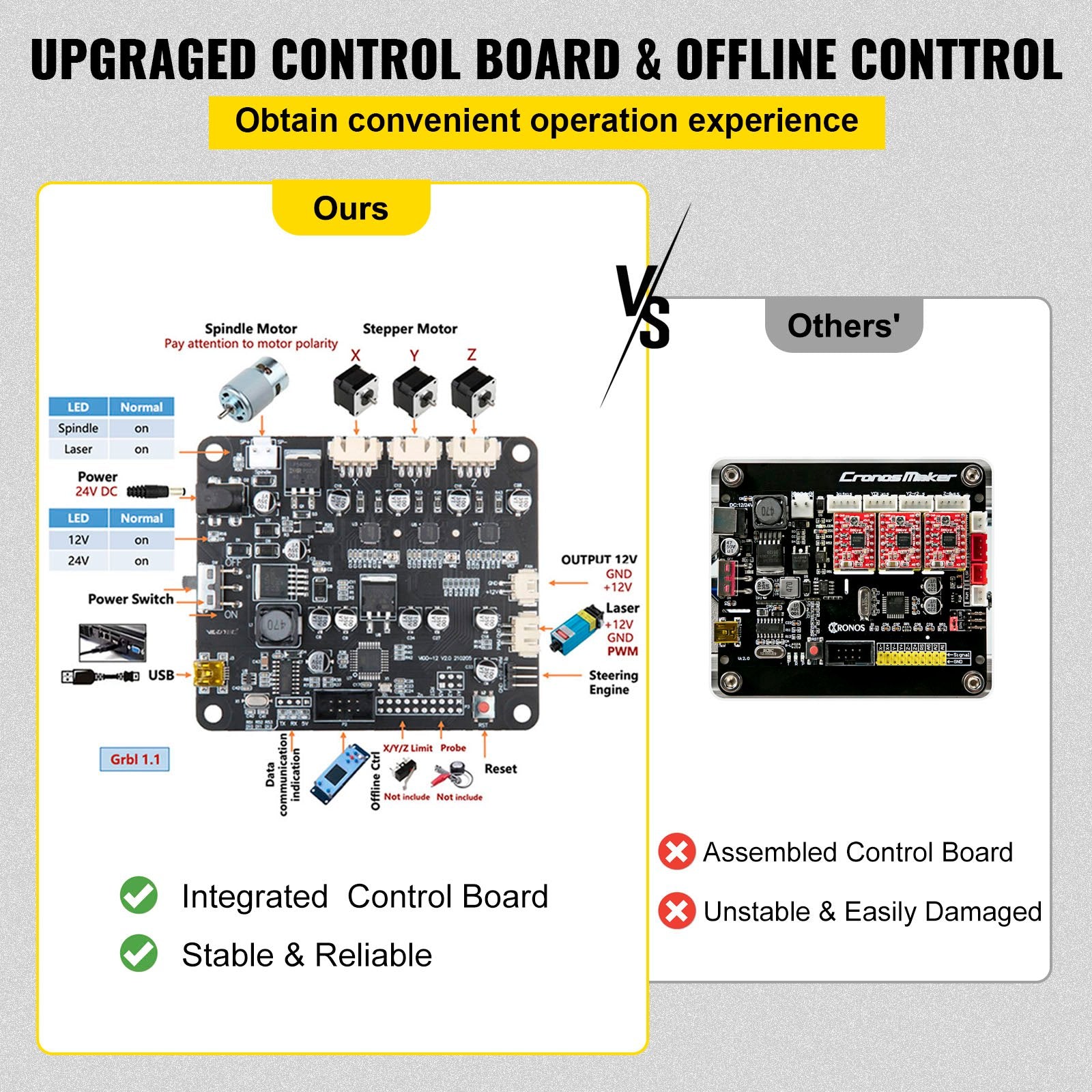

  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

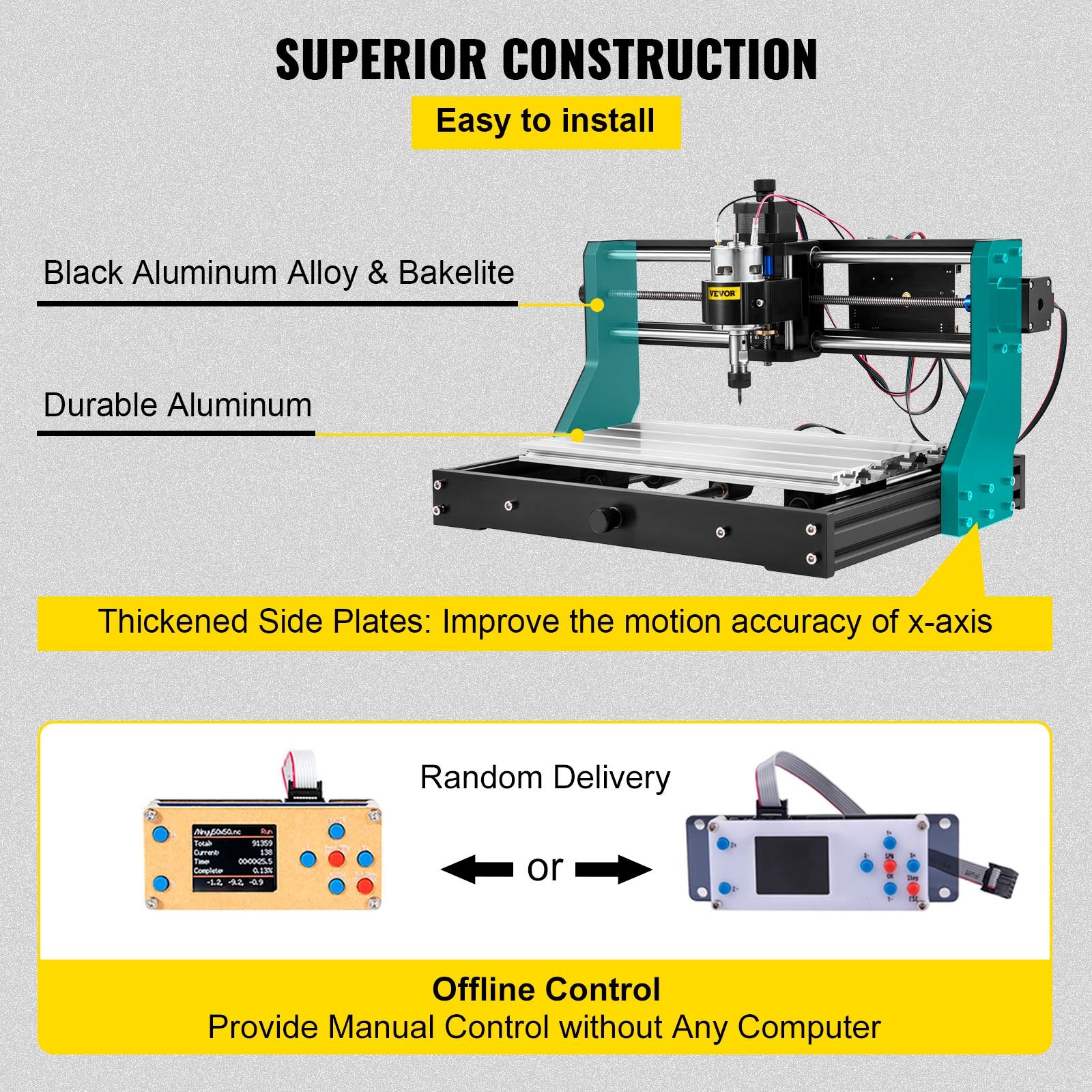

  • Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
    • Model
    VG-S3018 Pro
    Effective Working Area(X x Y x Z)
    11.8 x 7.1 x 1.8 inch / 300 x 180 x 45 mm
    Materials
    Aluminum Profile & Bakelite
    Input Power
    DC 24V 5A
    Driving Units
    Stainless Steel Screws
    Spindle Speed
    10000 rpm
    Stepping Motor
    12V; Torque
    Control Software
    GRBL Control
    Positioning Accuracy
    0.003 inch/ 0.08 mm

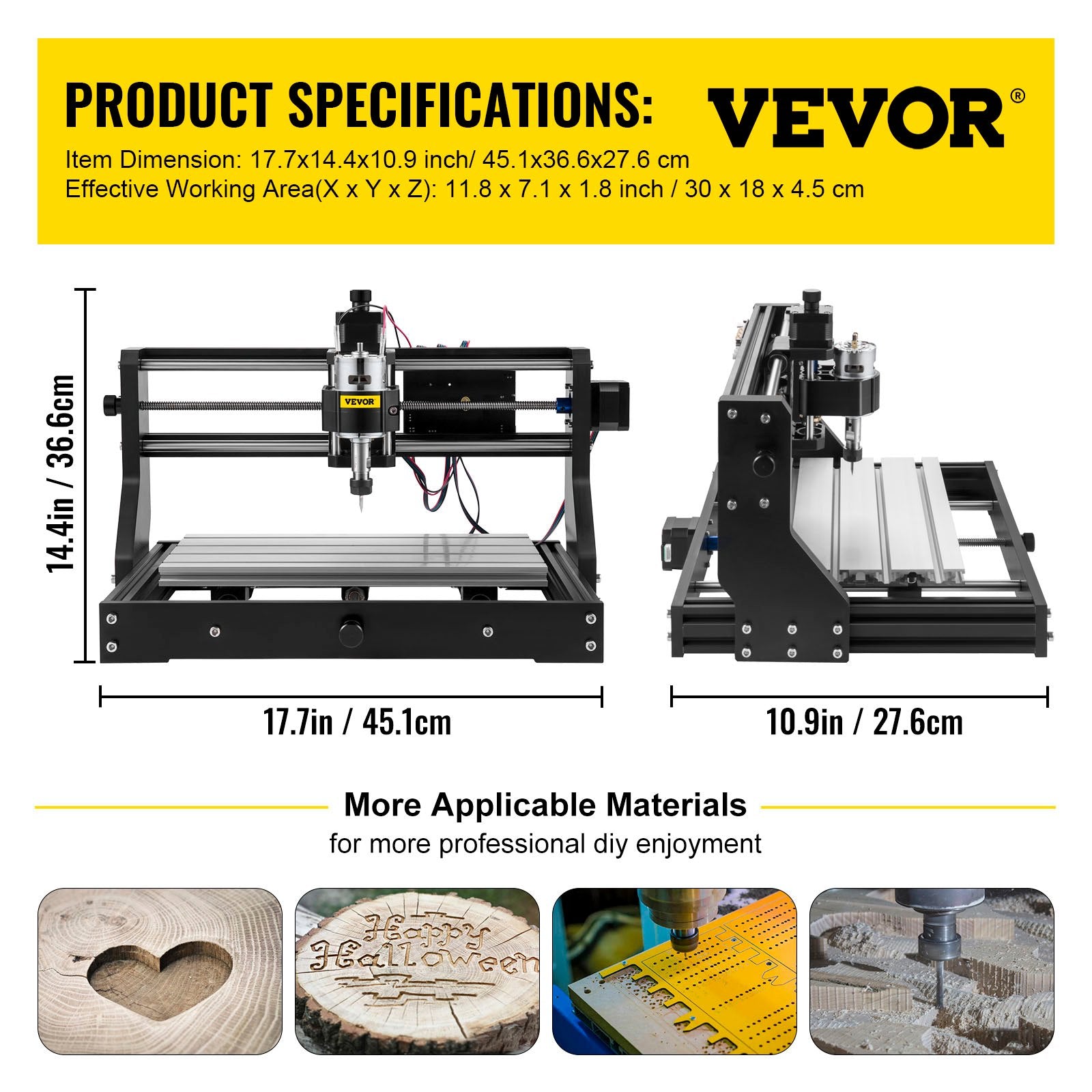

    Item Dimension
    17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
    Manual
    Download Link
