Desktop Laser Engraver 18.1"x31.9" Large Engraving Area 7.5W Laser Power

Desktop Laser Engraver 18.1"x31.9" Large Engraving Area 7.5W Laser Power

€470,00 EUR
€470,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Latest Laser Technology: This laser engraver adopts the latest spot compressed laser technology, making the light source more concentrated. Laser power is 6W, and the ultra-fine laser focus area is reduced to 0.02 x 0.02 mm.

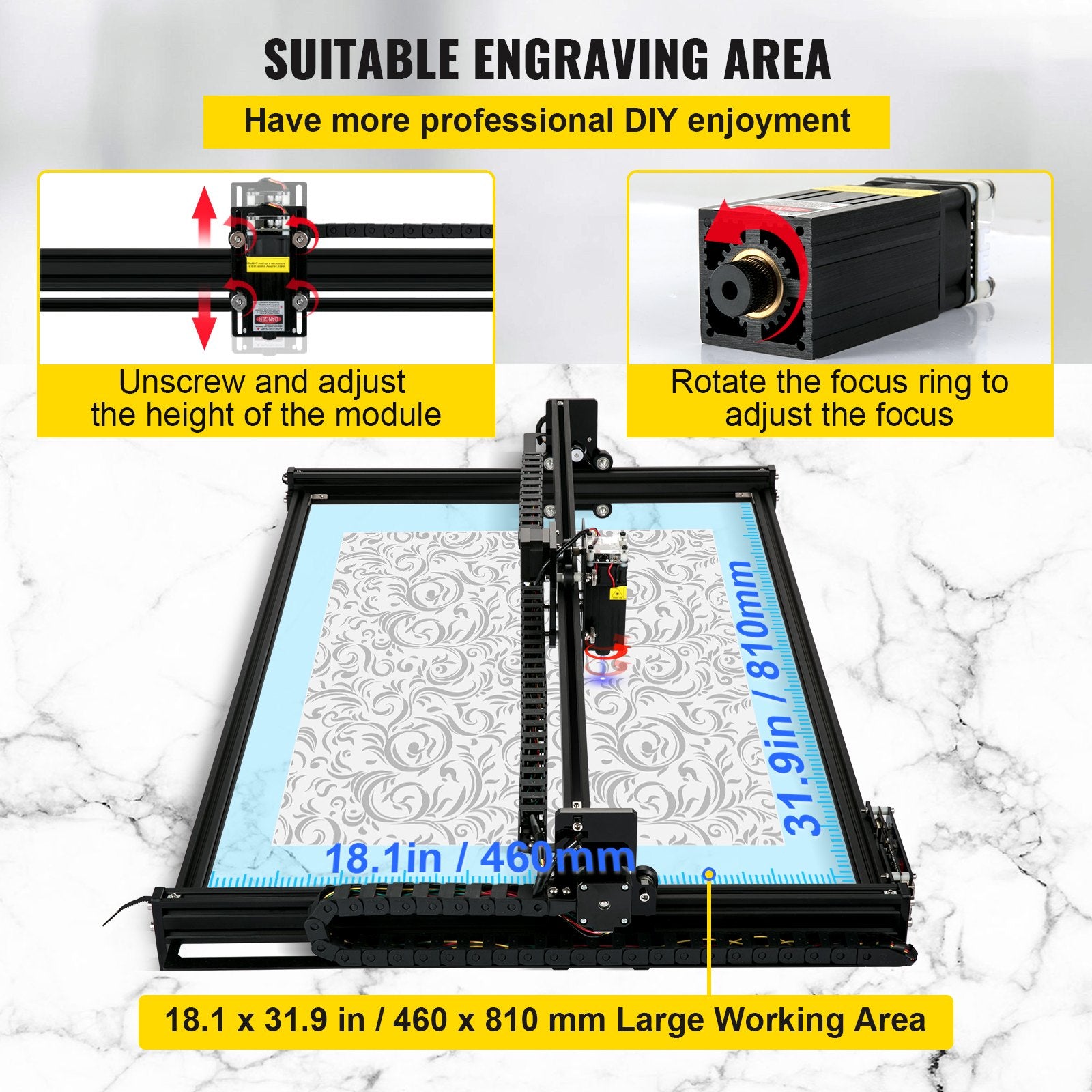

  • Fabulous Engraving Area: This laser engraver machine has a 460 x 810 mm working area for cutting and engraving. You can adjust the distance between the laser engraving spot and the module, then rotate the focus ring to adjust the focus.

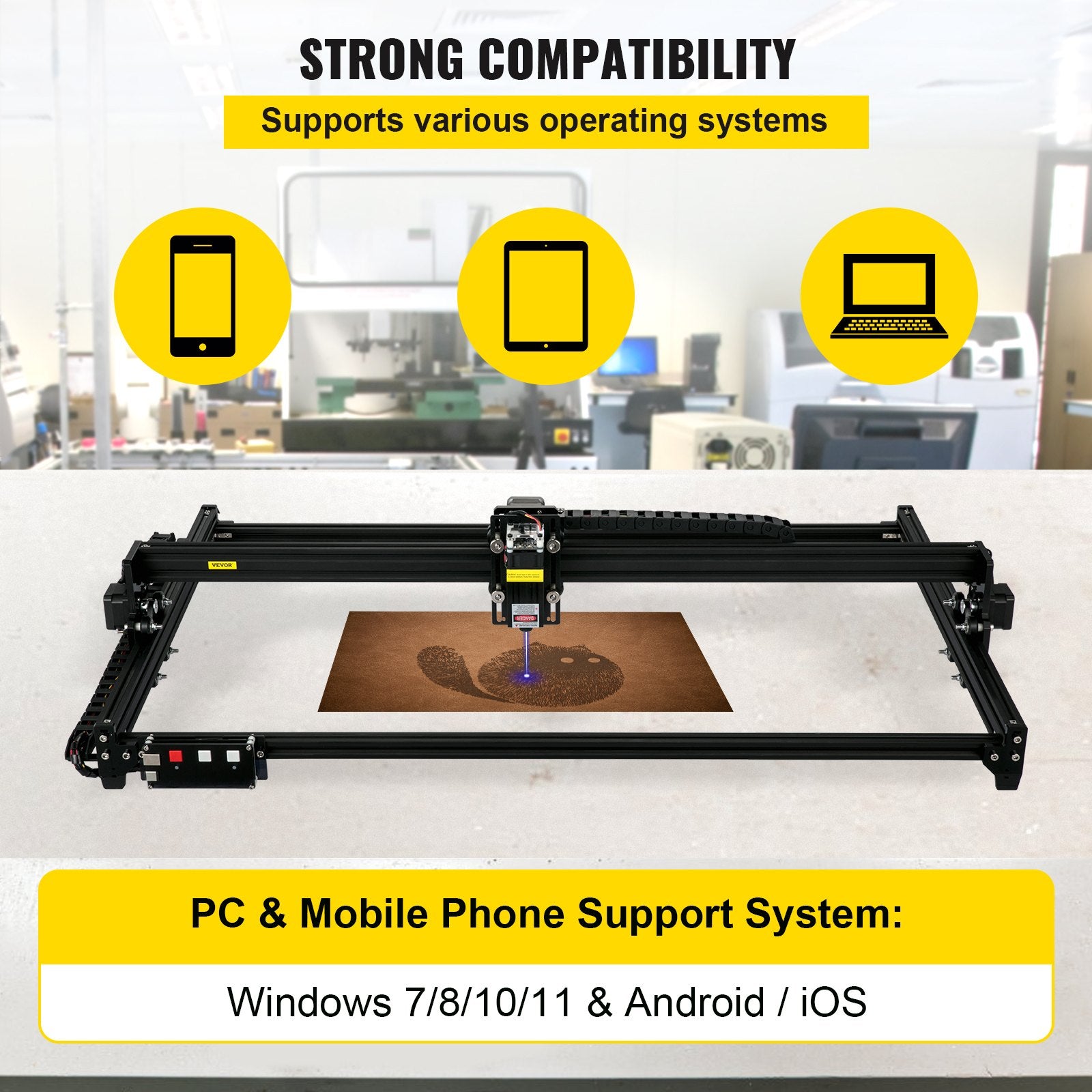

  • Wide Compatibility: This wood laser engraving machine has strong compatibility. It supports various operating systems (Windows 7 / 8 / 10 / 11, iOS, Android). It also supports the latest GRBL f1.1 firmware, VevorWorks, LaserGRBL, Lightburn software. So it’s convenient for you to control with no effort.

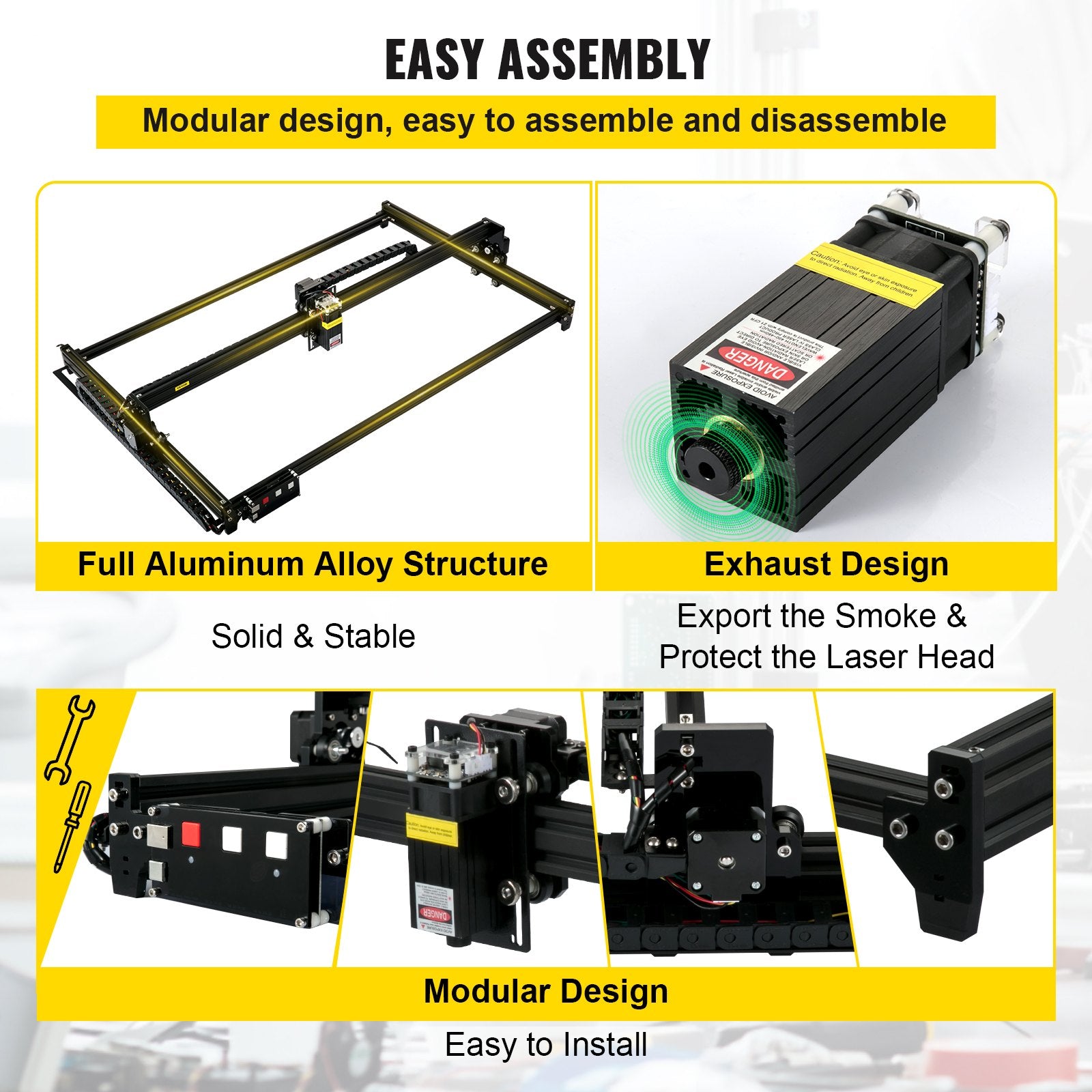

  • Easy Assembly Structure Design: The all-aluminum alloy anodized structure design makes the laser cutter more durable and improves engraving accuracy. The entire structure has been designed for quick assembly, and the body can generally be completed within 10-20 minutes.

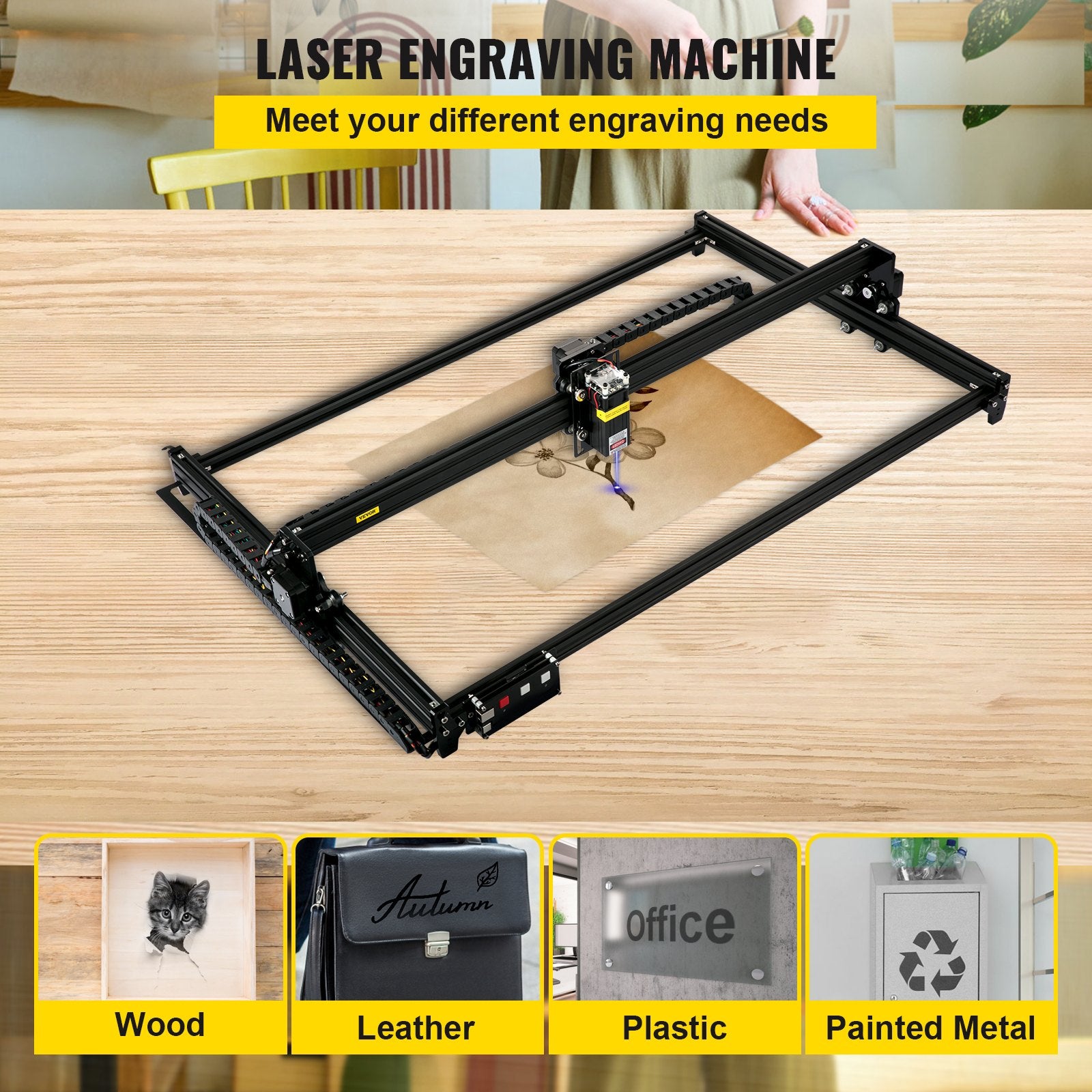

  • Versatile Use: This professional engraving machine is widely used in paper, wood, leather, cloth, plastic, acrylic, painted metal surface, horn, stainless steel, die steel, iron, etc. It’s perfect for beginners or professionals.
    • Material
    Aluminum Alloy
    Engraving Area
    18.1 x 31.9 in / 460 x 810 mm
    Spot
    Semiconductor Laser
    Output Power
    6W
    Engraving Accuracy
    0.0008 in / 0.02 mm
    Wave Length
    450 nm
    Maximum Speed
    6000 mm/min
    Connection Type
    Wi-Fi / USB
    Supported Operation System
    Windows7/8/10/11, iOS/Android
    Supported Image Formats
    G-Code, NC, BMP, JPG, PNG, DXF, etc
    Spot Size
    0.003 x 0.003 in / 0.08 x 0.08 mm
    Net Weight
    10.6 lbs / 4.8 kg

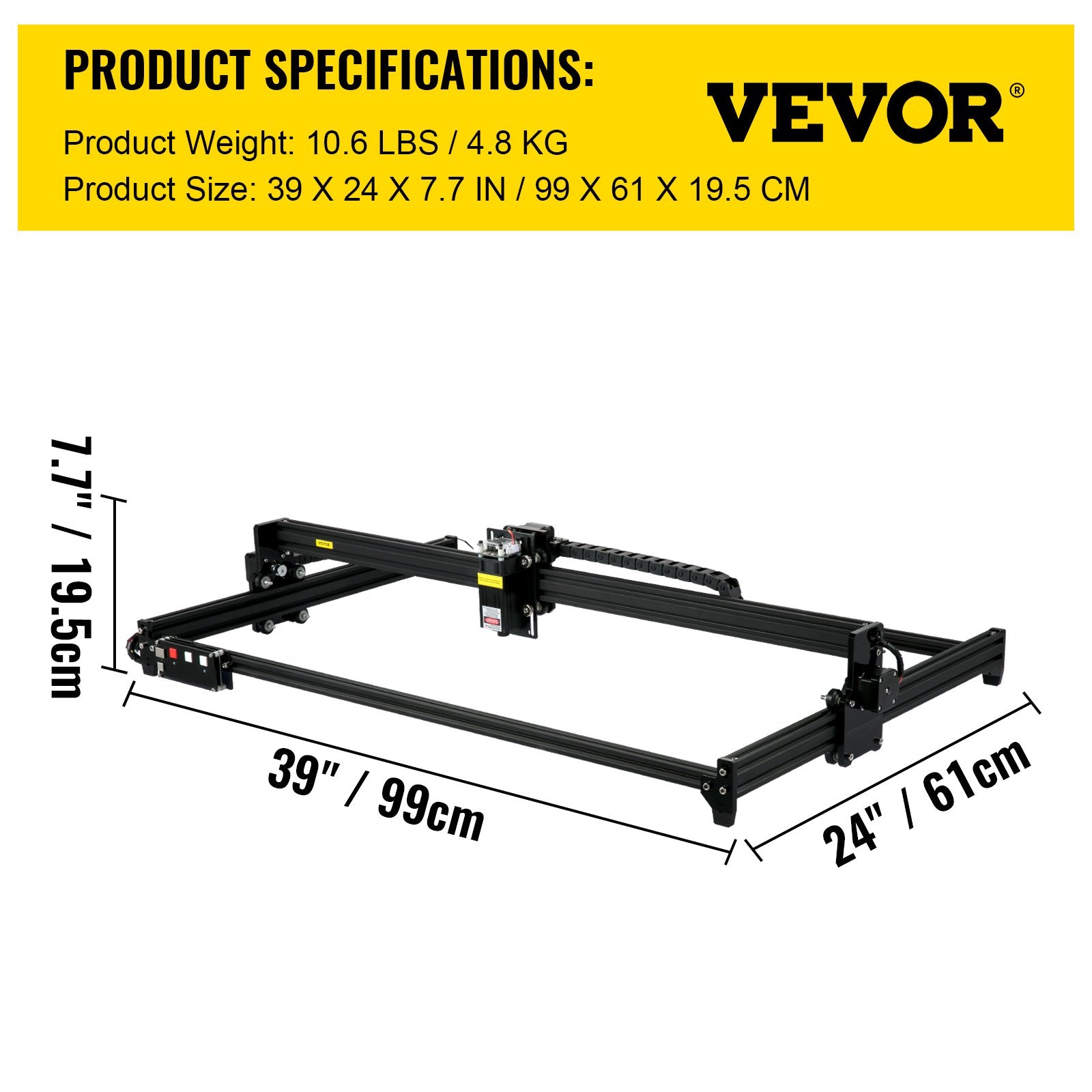

    Product Size
    39 x 24 x 7.7 in / 990 x 610 x 195 mm





    Specifications

    • Material: aluminum alloy

    • Engraving area: 18.1 x 31.9 inches / 460 x 810 mm

    • Point: semiconductor lasers

    • Output power: 6W

    • Engraving accuracy: 0.0008 inch / 0.02 mm

    • Wavelength: 450nm

    • Speed: Max. 6000mm/min

    • Connection type: Wi-Fi / USB

    • Operating systems: support Windows 7 / 8 / 10 / 11, iOS / Android

    • Image formats: support G-Code, NC, BMP, JPG, PNG, DXF, etc

    • Spot size: 0.003 x 0.003 inch / 0.08 x 0.08 mm

    • Net weight: 10.6 lbs / 4.8 kg

    • Product size: 39 x 24 x 7.7 inches / 990 x 610 x 195 mm

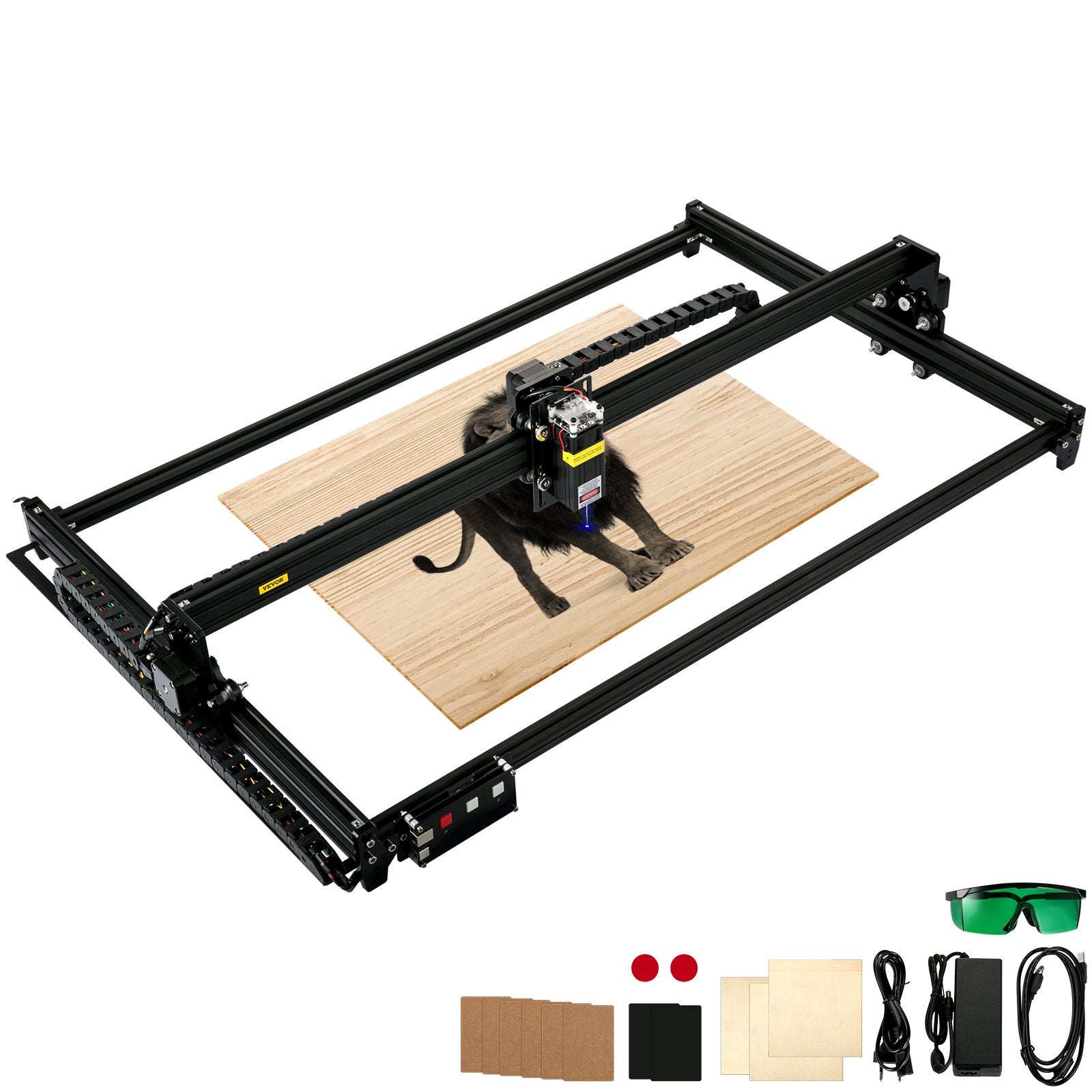

      • 1 x Engraving Machine Host (Parts)

      • 1 x Laser Module

      • 1 x Assembly Tool

      • 1 x Power Adapter

      • 1 x Power Cord

      • 1 x USB Cable

      • 1 x Laser Safety Glasses

      • 1 x Card Reader

      • 5 x Kraft boxes

      • 2 x Black Aluminum Sheets

      • 3 x Wooden Boards

      • 2 x Red Acrylic Discs
        Professional cutting depth: cutting plywood < 5 mm cutting birch plywood < 2mm cutting MDF <4mm cutting black acrylic < 2 mm cutting leather < 10mm cutting softwood <8mm
