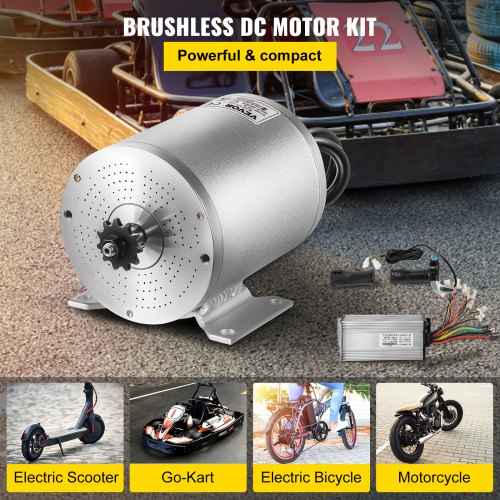

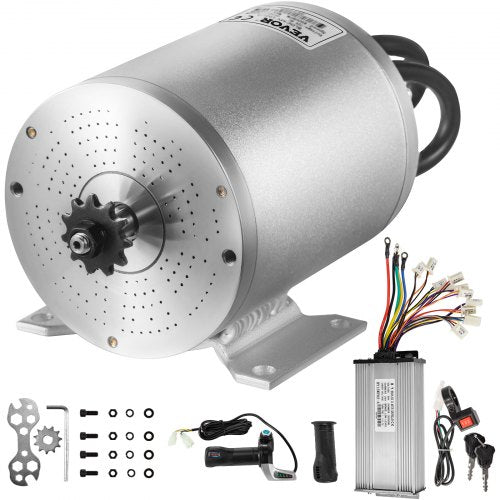

Electric Brushless DC Motor 48V 2000W Brushless Electric Motor 4300 RPM High Speed Motor w/ 34A Controller and Throttle Grip for Go Kart ATV Electric Scooter Motorcycle Mid Drive Motor DIY Part
Electric Brushless DC Motor 48V 2000W Brushless Electric Motor 4300 RPM High Speed Motor w/ 34A Controller and Throttle Grip for Go Kart ATV Electric Scooter Motorcycle Mid Drive Motor DIY Part
Regular price
€215,00 EUR
Regular price
Sale price
€215,00 EUR
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Electric Brushless DC Motor 48V 2000W Brushless Electric Motor 4300 RPM High Speed Motor w/ 34A Controller and Throttle Grip for Go Kart ATV Electric Scooter Motorcycle Mid Drive Motor DIY Part

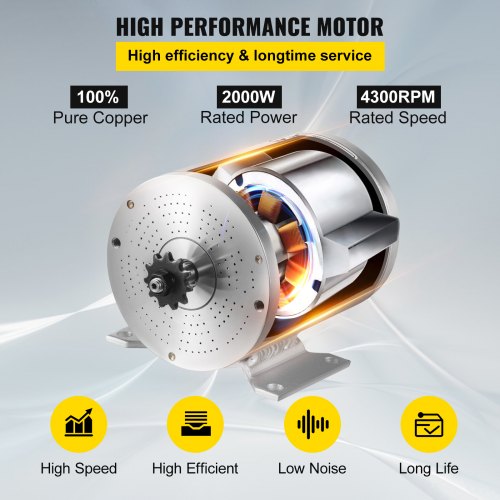

Pure Copper Coils
4300 RPM High Speed
Durable Aluminum Alloy Shell
Dual-Direction Design
Convenient Speed Control
Wide Application
Peak Efficiency: ≥ 82%,Controller Model: BY15WF02-A,Controller Phase Degree: 120°,Controller Conversion Efficiency: ≥ 85%,Output Power: 2000W,Maximum Speed: 5400 RPM,Motor Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 × 107 × 110 mm,Input Voltage: 48V DC,No-load Current: ≤ 5.0A,Motor Net Weight: 9.7 lbs / 4.4 kg,Motor Mount Bracket Size: 2.2 x 4'' / 56 × 102 mm,Rated Speed: 4300 RPM,Horsepower: 2.71 HP,Maximum Current: 41A,Working Temperature: < 120 °C / 248 ℉,Model: MY1020D,Controller Current: 34A,Rated Current: ≤ 34A,Controller Under Voltage Protection Voltage: 41V,Rated Torque: 566.45 oz.in / 4.0 N.m,Sprocket: T8F-11 Teeth
Pure Copper Coils
4300 RPM High Speed
Durable Aluminum Alloy Shell
Dual-Direction Design
Convenient Speed Control
Wide Application
Peak Efficiency: ≥ 82%,Controller Model: BY15WF02-A,Controller Phase Degree: 120°,Controller Conversion Efficiency: ≥ 85%,Output Power: 2000W,Maximum Speed: 5400 RPM,Motor Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 × 107 × 110 mm,Input Voltage: 48V DC,No-load Current: ≤ 5.0A,Motor Net Weight: 9.7 lbs / 4.4 kg,Motor Mount Bracket Size: 2.2 x 4'' / 56 × 102 mm,Rated Speed: 4300 RPM,Horsepower: 2.71 HP,Maximum Current: 41A,Working Temperature: < 120 °C / 248 ℉,Model: MY1020D,Controller Current: 34A,Rated Current: ≤ 34A,Controller Under Voltage Protection Voltage: 41V,Rated Torque: 566.45 oz.in / 4.0 N.m,Sprocket: T8F-11 Teeth
