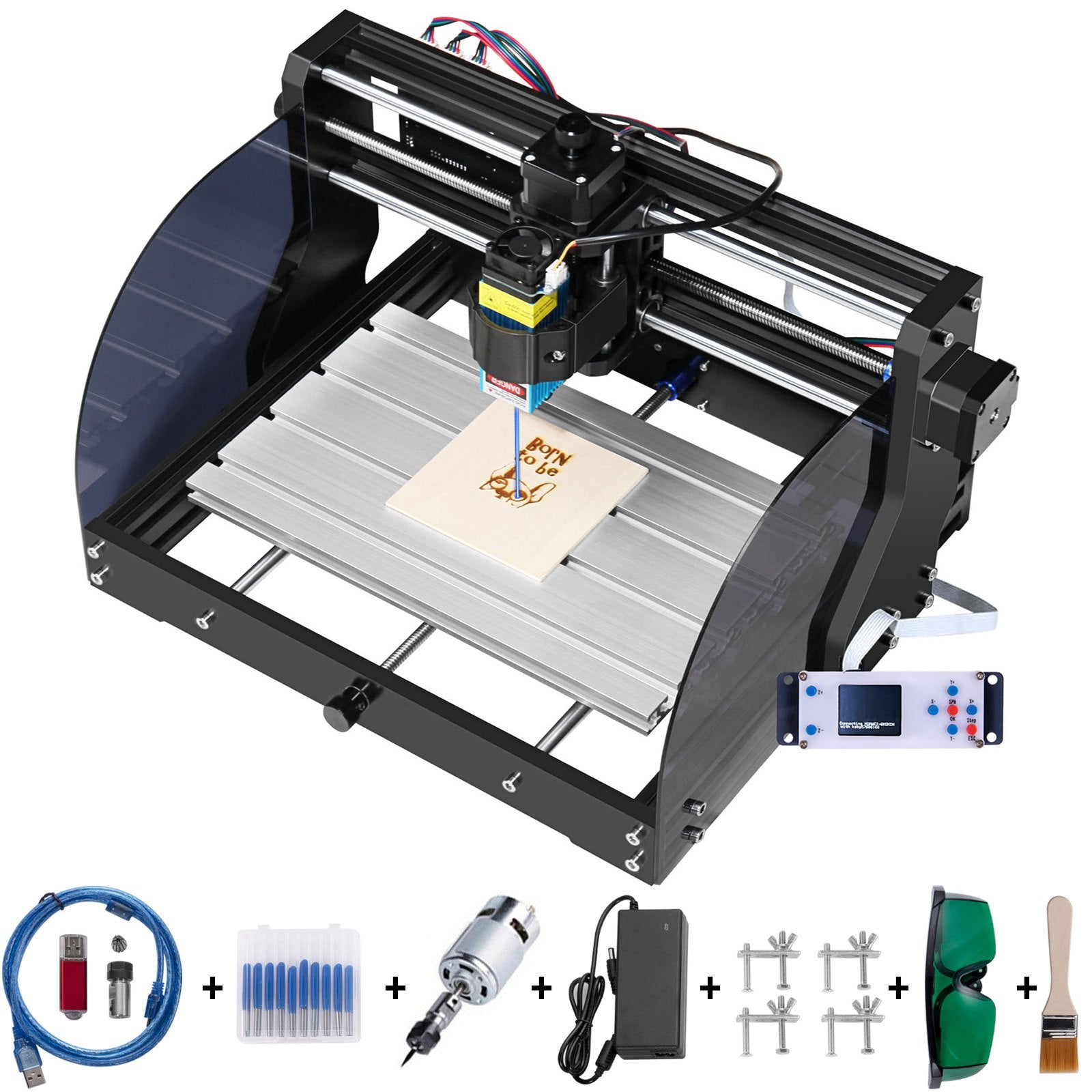

Engraving Machine 300×180×45 mm CNC Router CNC 3018 Pro 15W Laser Engraver GRBL Control 3 Axis Laser Engraving Machine, with Offline Controller, for Carving Plastic, Acrylic, PVC, Wood

Name: Engraving Machine 300×180×45 mm CNC Router CNC 3018 Pro 15W Laser Engraver GRBL Control 3 Axis Laser Engraving Machine, with Offline Controller, for Carving Plastic, Acrylic, PVC, Wood
Brand: DIY Ireland
Price: 480.0 EUR
Availability: InStock

€480,00 EUR

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

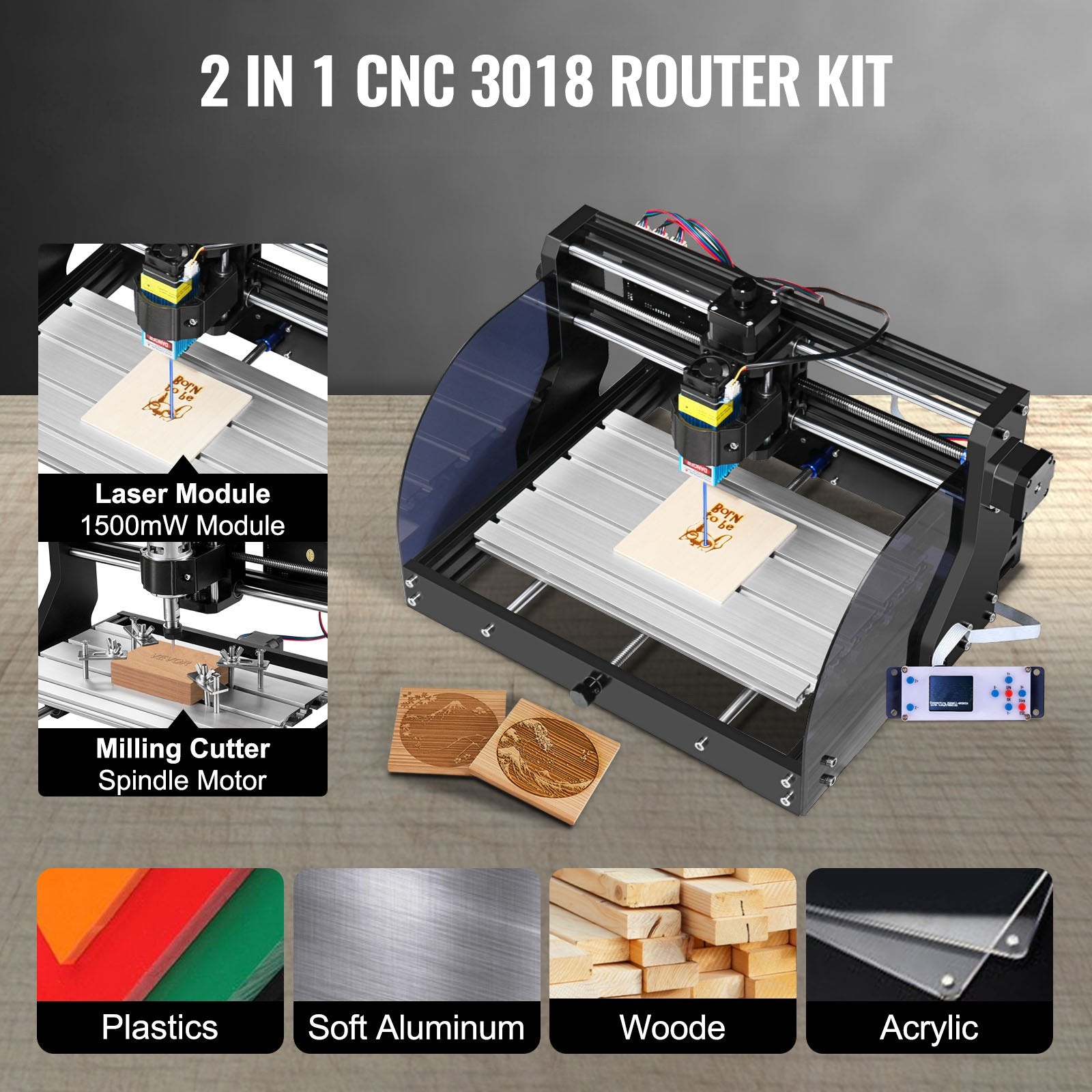

CNC 3018 Router Machine: The 15000mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.

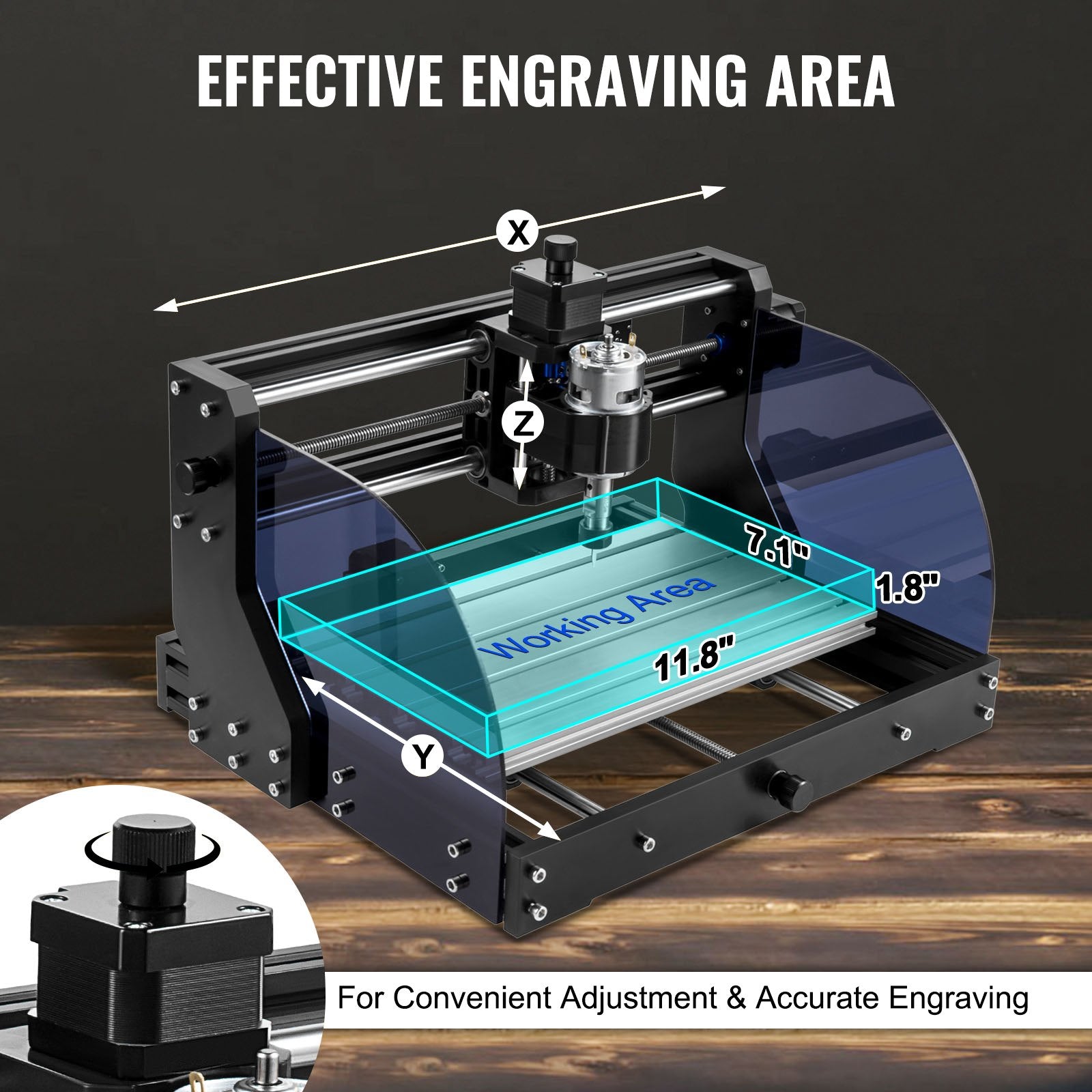

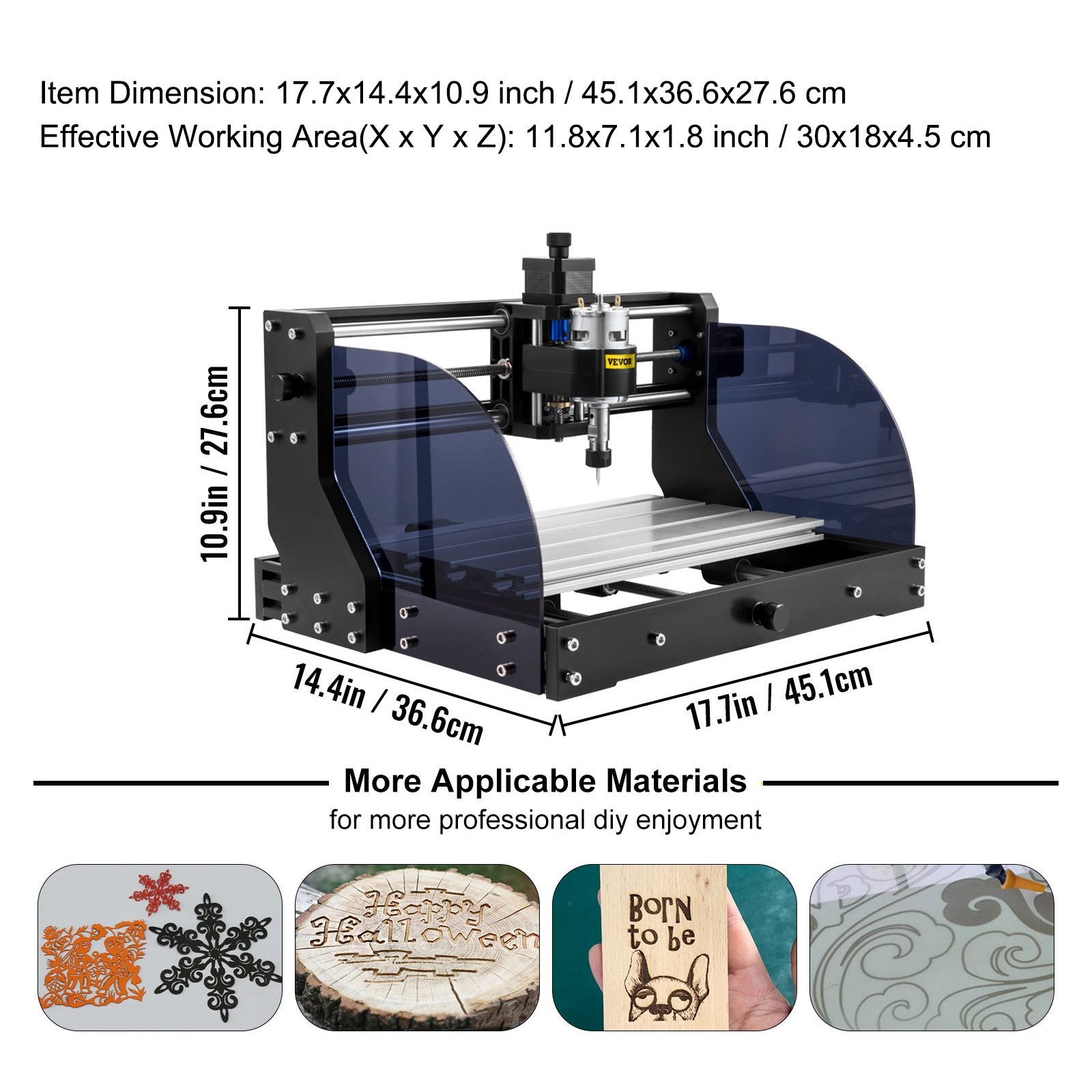

Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

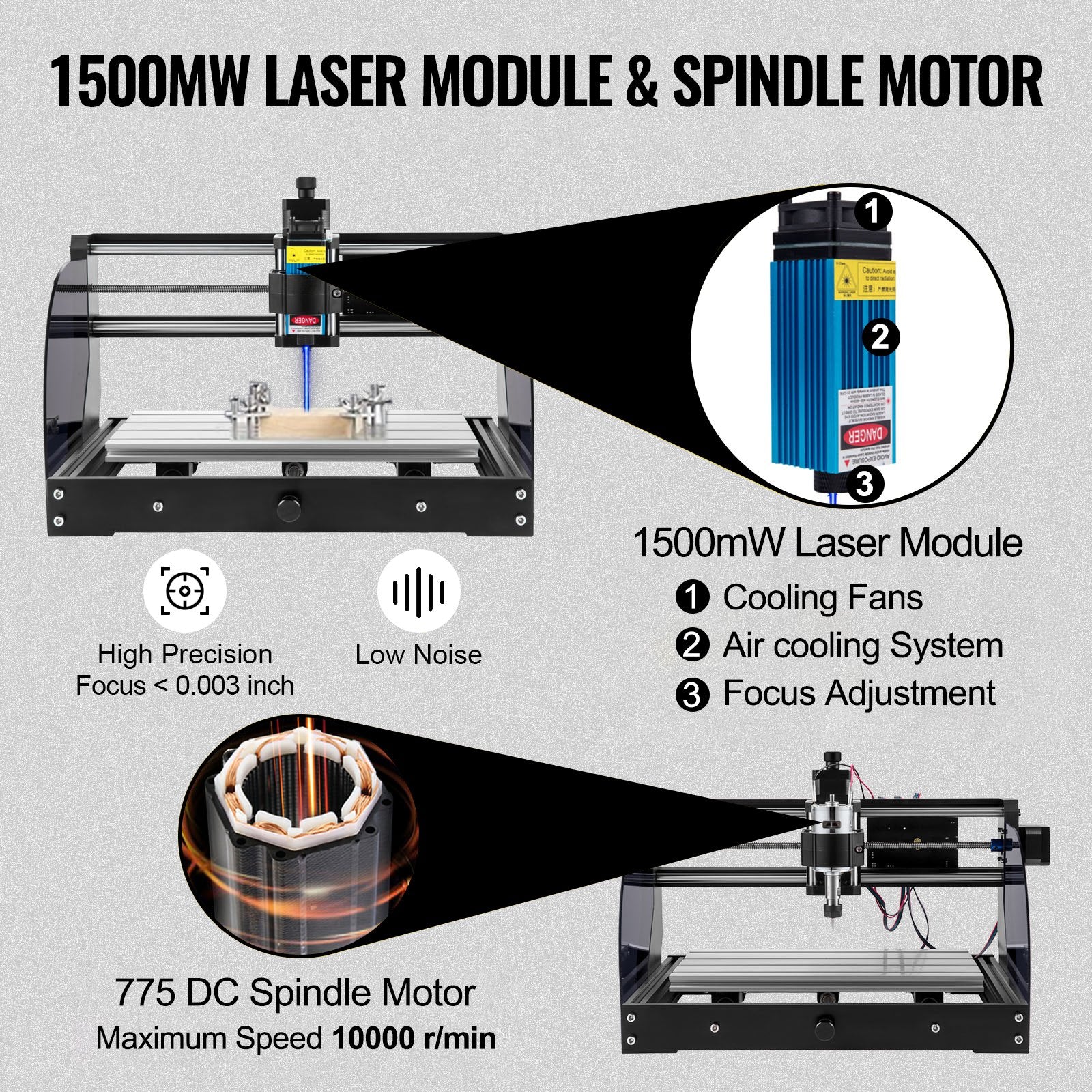

Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.

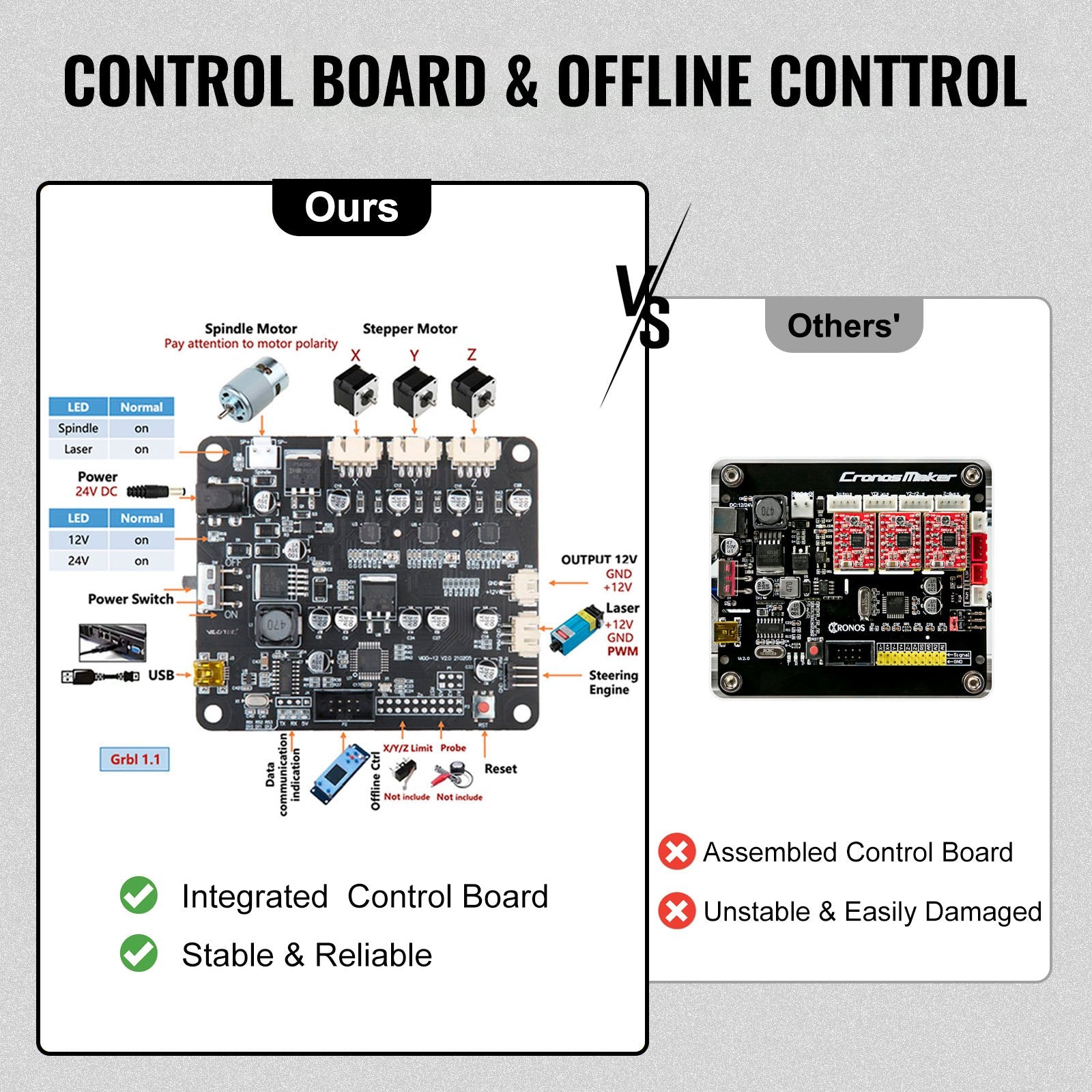

Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

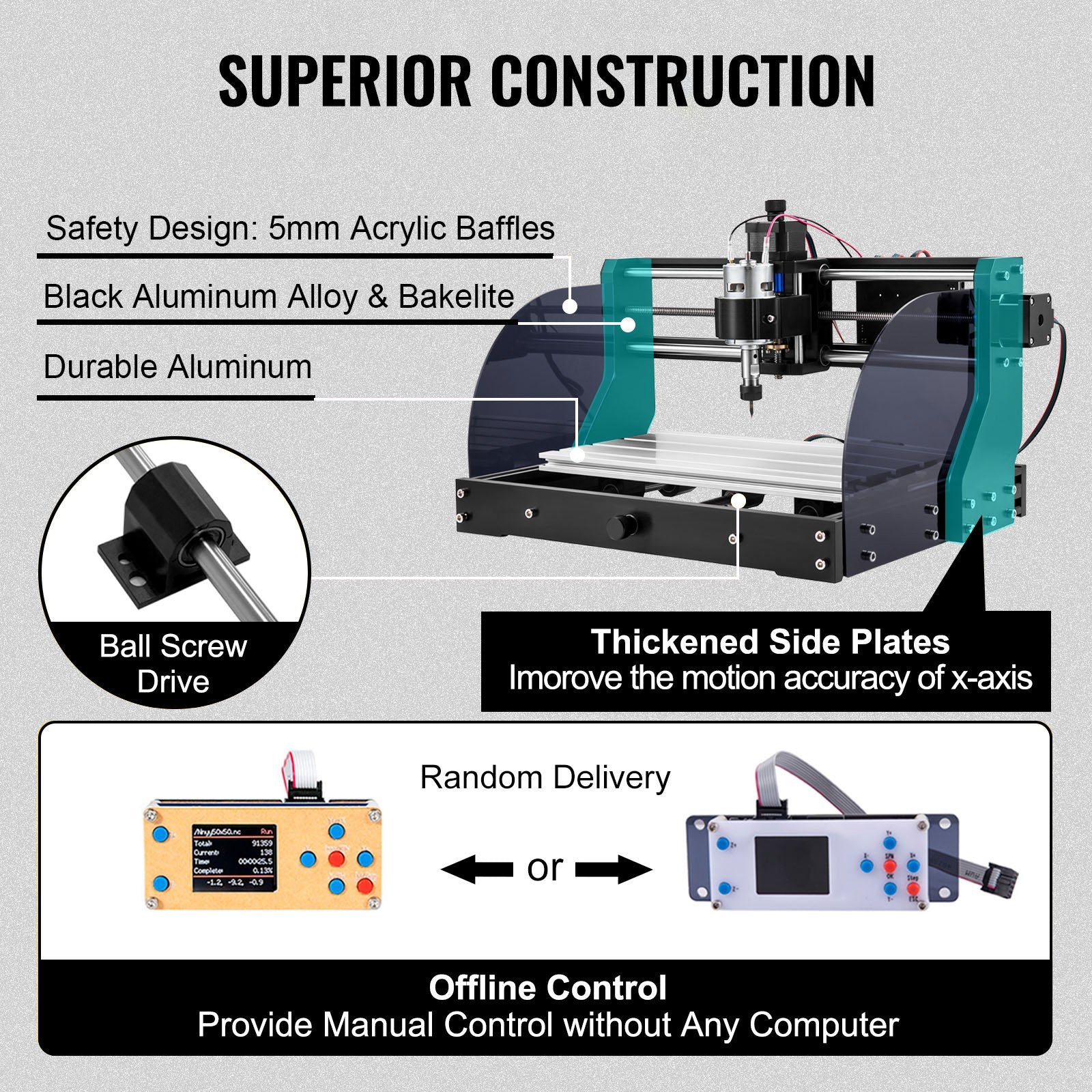

Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly. Also, it has a baffle on both sides, so you can safely monitor the engraving process.
