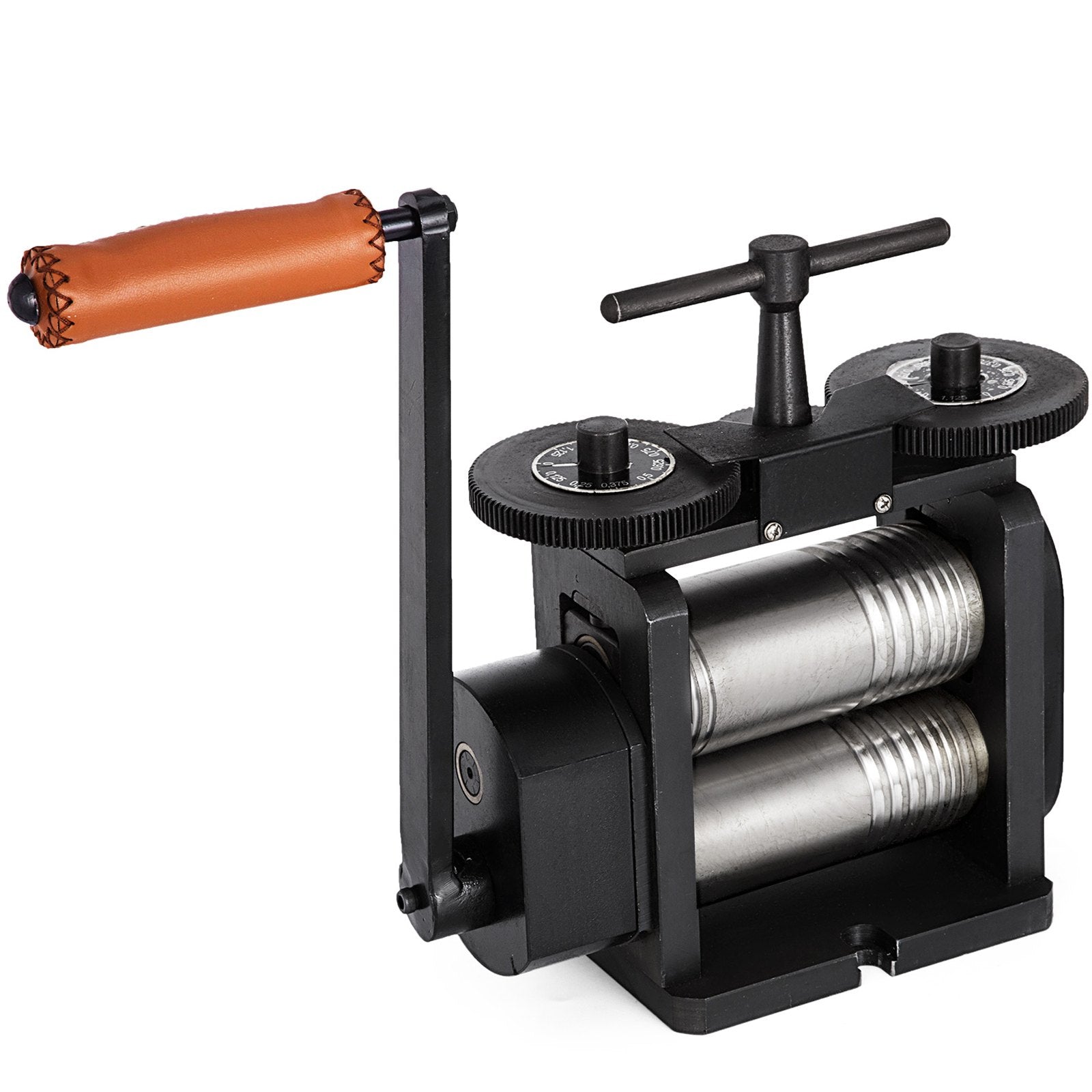

Jewelry Combination Rolling Mill 110mm Width Flat Rolling Mill 55 mm Diameter Rollers Rolling Mill Press Gear Ratio 4:1 Jewelry Press Tabletting Tool for Jewelry Repair Design

Jewelry Combination Rolling Mill 110mm Width Flat Rolling Mill 55 mm Diameter Rollers Rolling Mill Press Gear Ratio 4:1 Jewelry Press Tabletting Tool for Jewelry Repair Design

Regular price €380,00 EUR
Regular price Sale price €380,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • ?PARAMETER DETAILS?- Type: tableting pressure line, gear ratio: 4:1, roller width: 110 mm (4.33 inch), roller diameter: 55 mm (2.17 inch), maximum opening: 0-5 mm (0-0.2 inch), flat area (+/- 0.01 mm): 57 mm (2.24 inch).
  • ?SUPERIOR PERFORMANCE?- 4:1 reduction gear ratio allows the rollers to make one complete turn for every four turns of the mill rolling handle. It relieves the amount of force needed to operate the rolling mill.

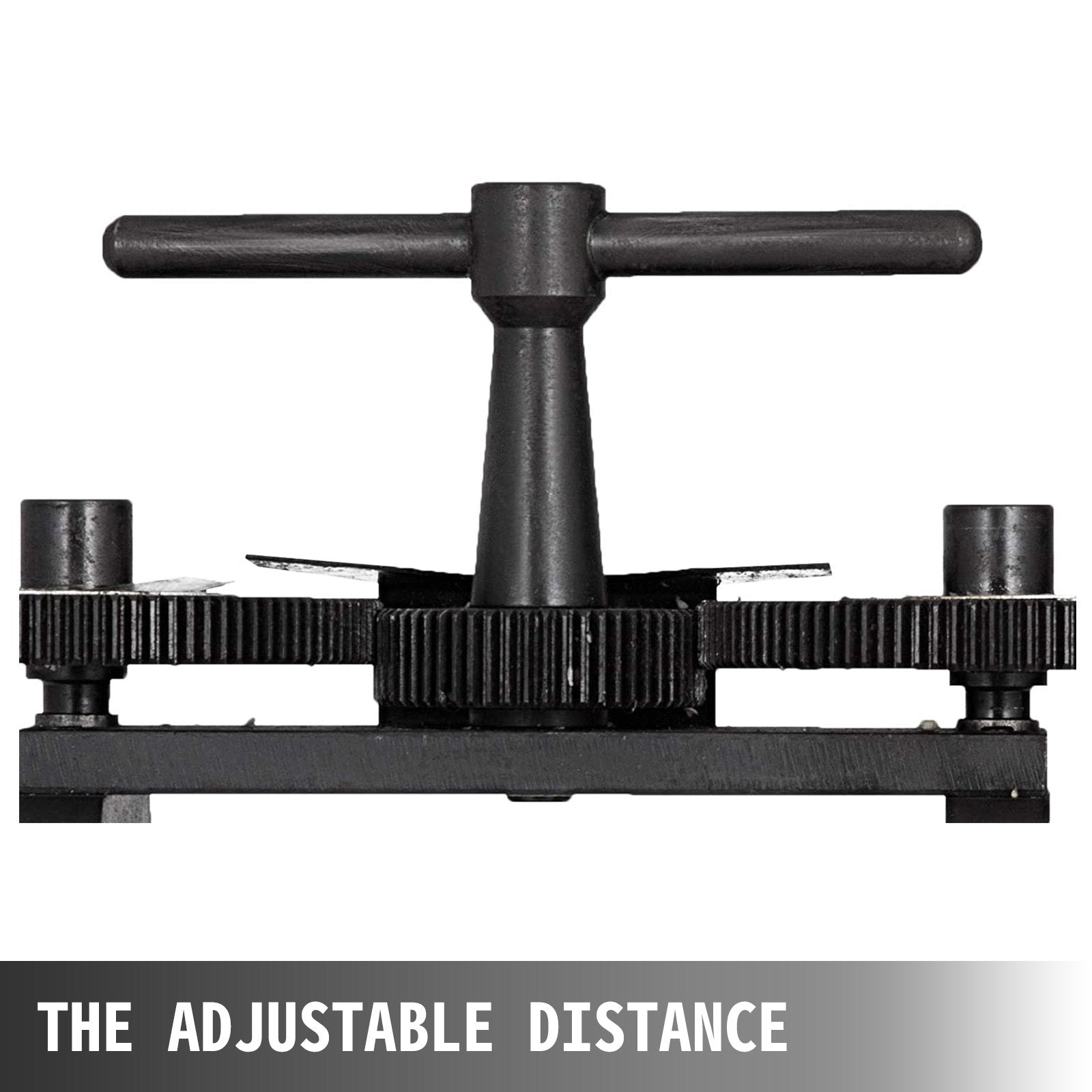

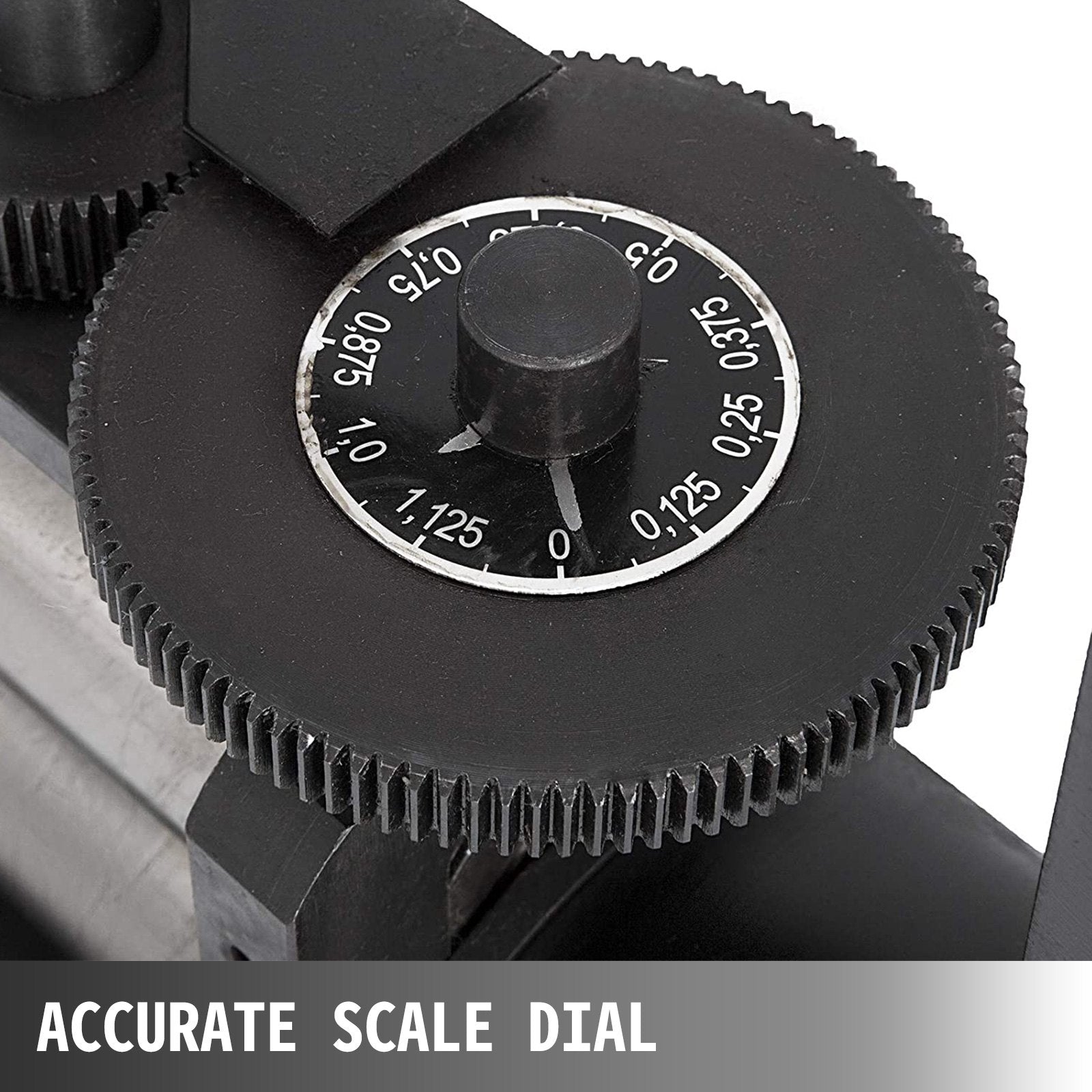

  • ?EASY TO ADJUST DISTANCE?- With a precise dial, the distance between the rollers can be precisely adjusted to meet different metal thicknesses. Convenient for the rolling press to press the metal into flakes.

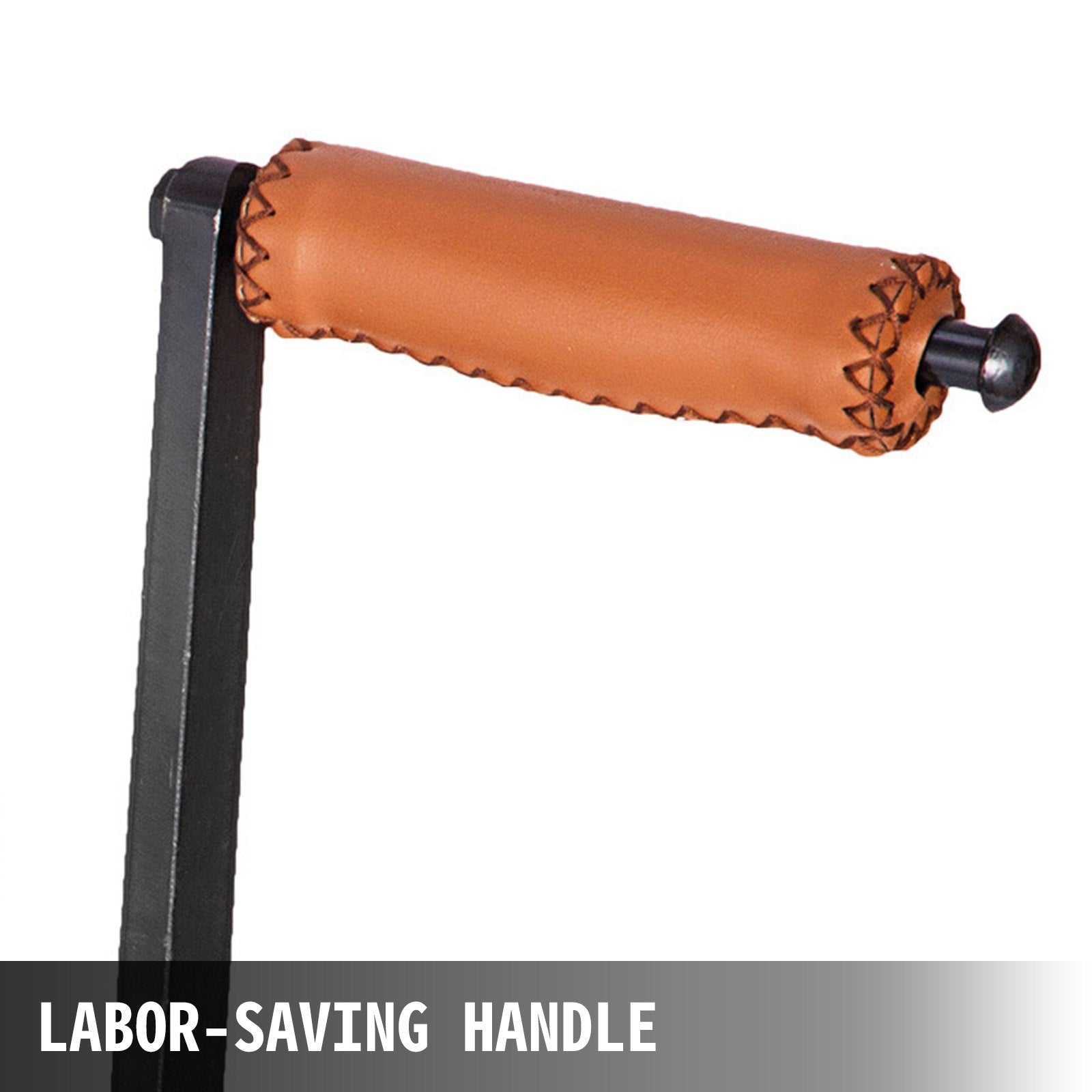

  • ?USER-FRIENDLY DETAILS?- The forged handle, comfortable to hold. Use the mounting holes to install the rolling mill on the workbench easily. During the operation, the ergonomic handle is very labor-saving, easy, and convenient.
  • ?APPLICATION FIELD?- Metal roller machine is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal. Ideal for jewelers and crafts-people to create your masterpiece!
  • Product
    Combination Rolling Mill
    Type
    Tableting Pressure Line
    Gear Ratio
    4
    Roller Width
    110 mm (4.33 inch)
    Roller Diameter
    55 mm (2.17 inch)
    Maximum Opening
    0-5 mm (0-0.2 inch)
    Flat Area (+/- 0.01 mm)
    57 mm (2.24 inch)
    Square Wire(+/- 0.01 mm)
    1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0
    Ring Shank - Half Round Ellipse(mm)
    2.5 x 1, 3 x 1.25, 4 x 1.5
    The Thinnest Metal Foil
    0.01 inch
    Package Size
    34 x 34 x 20 cm (13.39 x 13.39 x 7.87 inch)
    Gross Weight
    18.66 kg (41.14 lbs)
