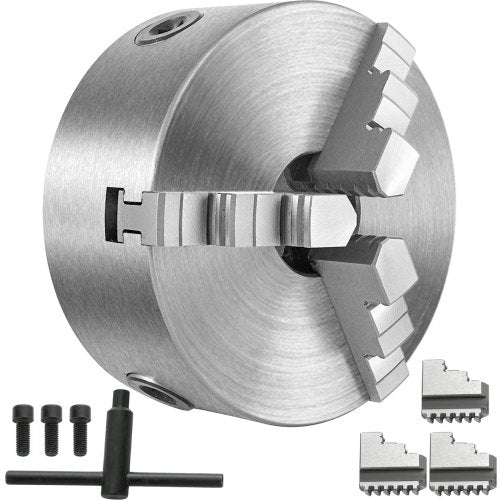

K11-125 " 3 Jaw Lathe Chuck Self centering Cast Iron Design External Jaw CNC Chuck Wood Turning Grinding Machine Harden Steel Milling Machine Semi-steel

K11-125 " 3 Jaw Lathe Chuck Self centering Cast Iron Design External Jaw CNC Chuck Wood Turning Grinding Machine Harden Steel Milling Machine Semi-steel
Quality Cast Iron
Self Centering Chuck
High-precision Chuck
Large Clamping Range
Easy Installation

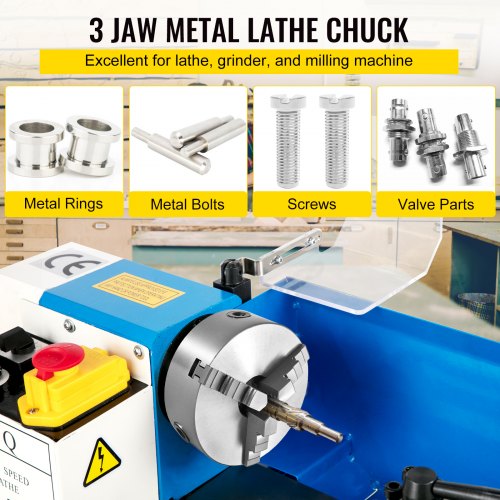

Wide Application

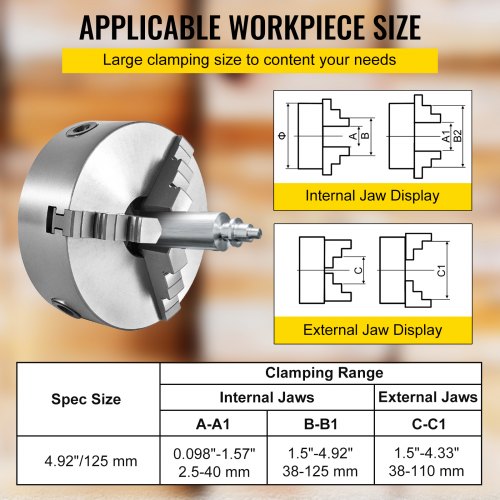

Bevel Gear Material: 40CR Steel,External Jaw Clamping Range (C-C1): 38-110 mm (1.5"-4.33"),Gross Weight: 11.2 lb (5.08 kg),Pinions Material: 20CR Steel,Chuck Body Material: Cast Iron,Size: 125 mm (4.92"),Internal Jaw Jamming Range (B-B1): 38-125 mm (1.5"-4.92"),Internal Jaw Clamping Range (A-A1): 2.5-40 mm (0.098"-1.57"),Jaws Material: 40CR Steel,Package Dimensions (LxWxH): 6.3"x6.3"x5.9" (16x16x15 cm),Center Hole Diameter: 30 mm (1.18"),Mounting Thread: 3-M8
