Laser Module 5.5w,cnc Laser Module 445nm 12v Laser Wavelength Laser Head

Laser Module 5.5w,cnc Laser Module 445nm 12v Laser Wavelength Laser Head

€187,00 EUR
€187,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Brilliant Performance: Material: Aluminum, Laser Power: 5500mw, Laser Wavelength: 445-450 nm (Blue), Working Voltage: 12V Dc, Supporting PWM / TTL, Cooling: Fan; Laser Interface: 3 Pins. Adopting an intelligent feedback control circuit, external constant current drive mode, featuring with reliability, high stability, high efficiency, low noise & excellent laser beam quality.
  • Dual Heat Dissipation: Equipped with the large aluminum heatsink and cooling fan, added 4 heat dissipation diversion holes, the heat dissipation improves 15%-20%. This makes the heat dissipate go fast, protect the laser, and prolong its service life, ensure the laser module works continuously.
  • Adjustable Focus: Spinning the laser lens, the laser lens's focus can be adjusted as needed. The precise adjustment is beneficial to bring a better engraving effect.
  • Accessories Included: The accessory package includes: a pair of protective glasses, a power supply wire, a control wire and a module test board.
  • Versatile Use: The laser head is designed for industrial CNC laser machine. Ideal for engraving, cutting, scribing, and drilling; compatible with 1610pro/3018/3018 pro. Note: This machine is not capable of cutting the metal. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.
    • Model
    XSS05
    Supply Voltage
    12VDC
    Working Current
    2.0A Max
    Output Optical Power
    >5.5W
    Laser Power
    5.5W
    Laser Wavelength
    445nm-455nm
    Facula Type
    Dot (Adjustable Focus)
    Driving Mode
    Built in ACC Constant Current Drive
    Laser Output Control
    PWM/TTL
    Power Supply & Control Interface
    2.54 3PIN
    Shell Material
    Aluminum Surface Anode Blue
    Module Material
    Brass
    Collimating Lens
    K9 Optical Glass & High Antireflection Coating
    Heat Dissipation Mode
    Aluminum Alloy Shell Forced Air Cooling
    Net Weight
    0.34 lbs / 153 g

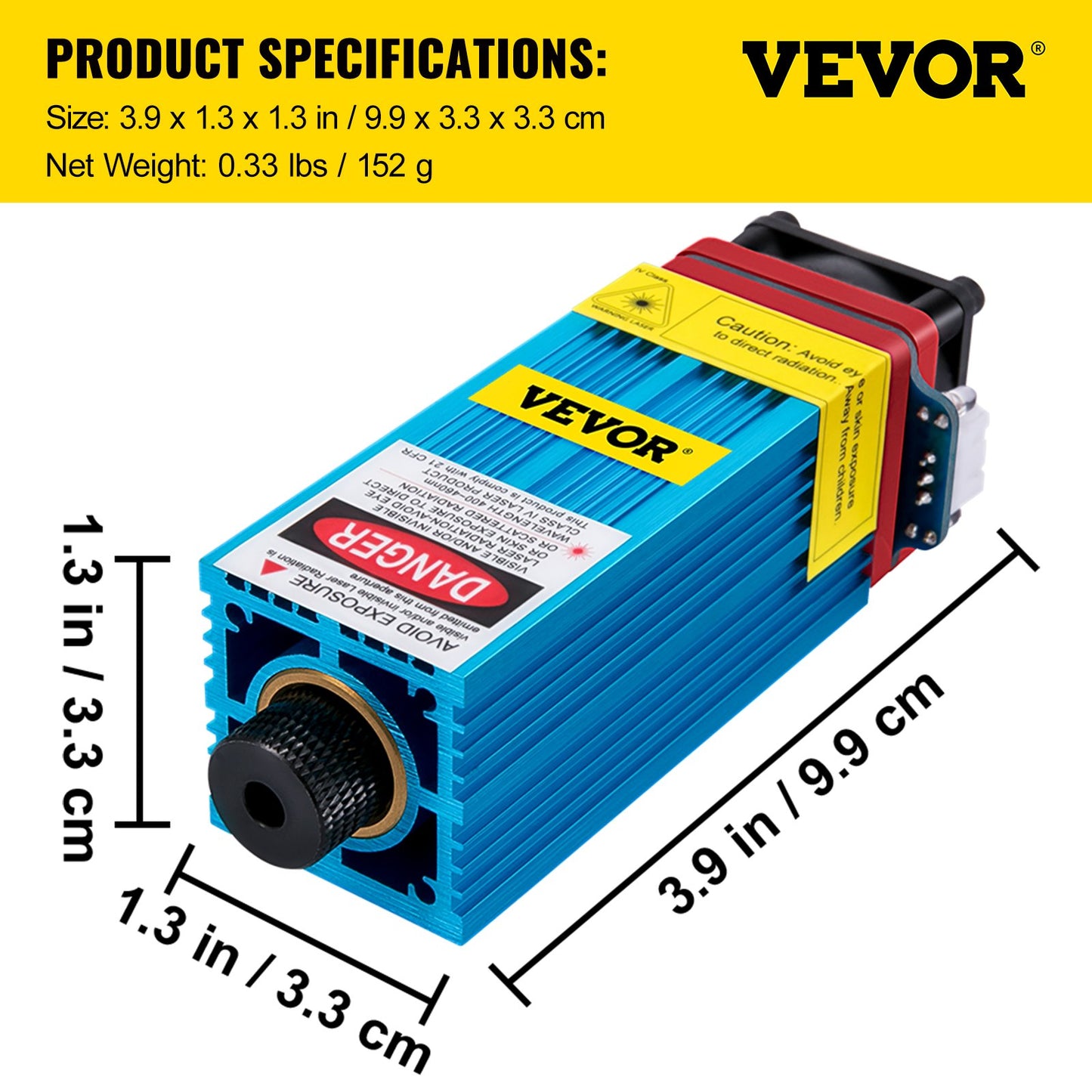

    Product Size
    3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm
