Laser Module 5.5w CNC Laser Module 450nm 12V Laser Wavelength Laser Head

Laser Module 5.5w CNC Laser Module 450nm 12V Laser Wavelength Laser Head

€203,00 EUR
€203,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Brilliant Performance: Material: Aluminum, Laser Power: 5.5W, Laser Wavelength: 450 nm (Blue), Working Voltage: 12V DC, Supporting PWM / TTL, Cooling: Fan; Laser Interface: 3 Pins. Adopting an intelligent feedback control circuit, external constant current drive mode, featuring with reliability, high stability, high efficiency, low noise & excellent laser beam quality.
  • Dual Heat Dissipation: Equipped with the large aluminum heatsink and cooling fan, added 4 heat dissipation diversion holes, the heat dissipation improves 15%-20%. This makes the heat dissipate go fast, protect the laser, and prolong its service life, ensure the laser module works continuously.
  • Adjustable Laser: Compared to some common laser modules on the market, the 5.5W high-power laser head is much stronger, able to engrave on some soft metals, such as aluminum, etc.

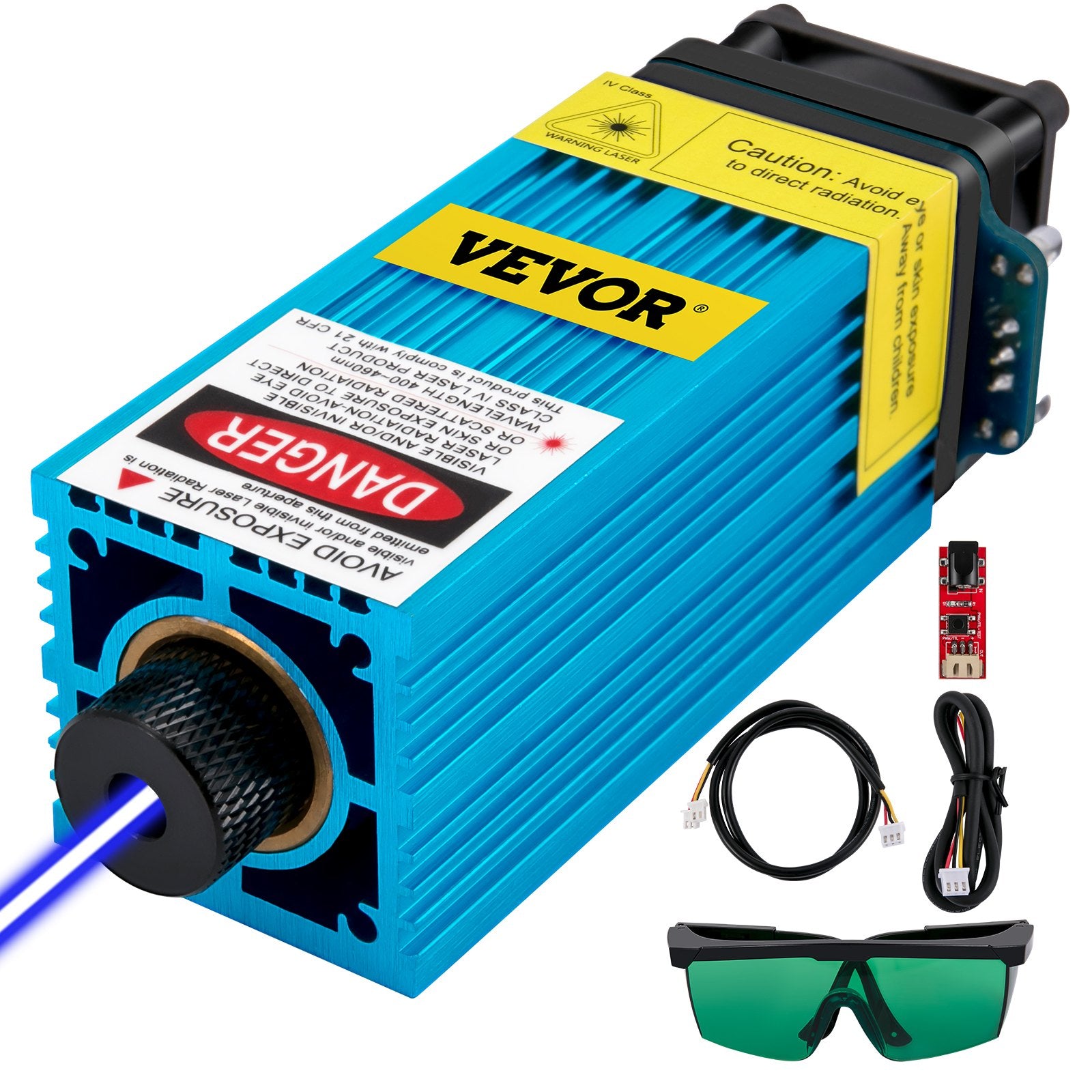

  • Accessories Included: The accessory package includes: a pair of protective glasses, a power supply wire, a control wire and a module test board.
  • Versatile Use: The laser head is designed for industrial CNC laser machine. Ideal for engraving, cutting, scribing, and drilling; compatible with 1610pro/3018/3018 pro. Note: This machine is capable of cutting soft metal like aluminum. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.
    • Model
    XTS15W
    Supply Voltage
    12VDC
    Working Current
    2.0A Max
    Rated Power
    22W MAX
    Laser Power
    5500mW
    Module Power
    15W
    Output Power
    5.8W
    Electro Optic Conversion Rate
    >25%
    Laser Wavelength
    450nm (Blue Light)
    Facula Type

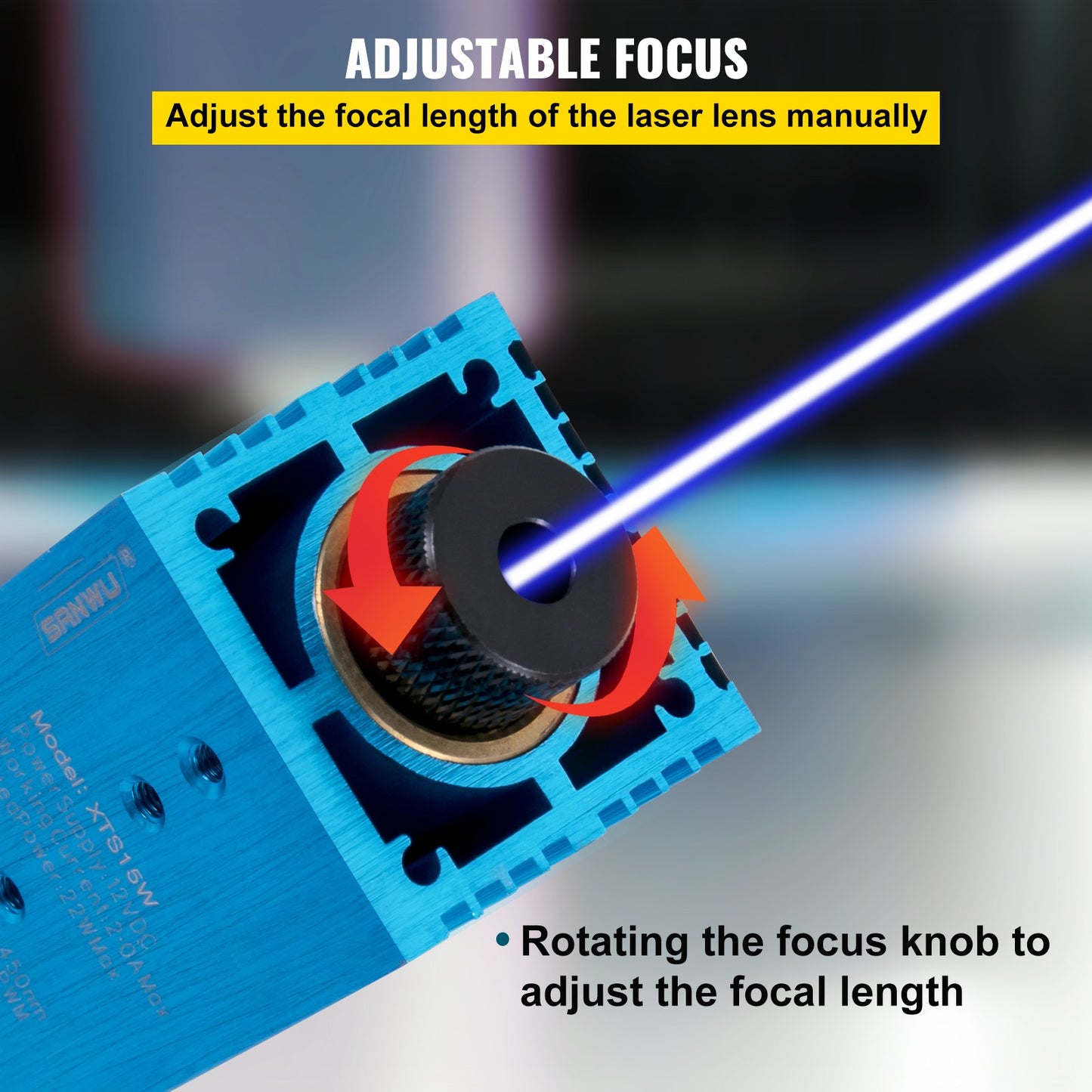

    Dot (Adjustable Focus)
    Driving Mode
    Built in ACC Constant Current Drive
    Laser Output Control
    PWM/TTL
    Power Supply And Control Interface
    2.54 3PIN
    Shell Material
    Aluminum Surface Anode Blue
    Module Material
    Brass
    Collimating Lens
    K9 Optical Glass & High Antireflection Coating
    Heat Dissipation Mode
    Aluminum Alloy Shell Forced Air Cooling
    Net Weight
    0.34 lbs / 153 g

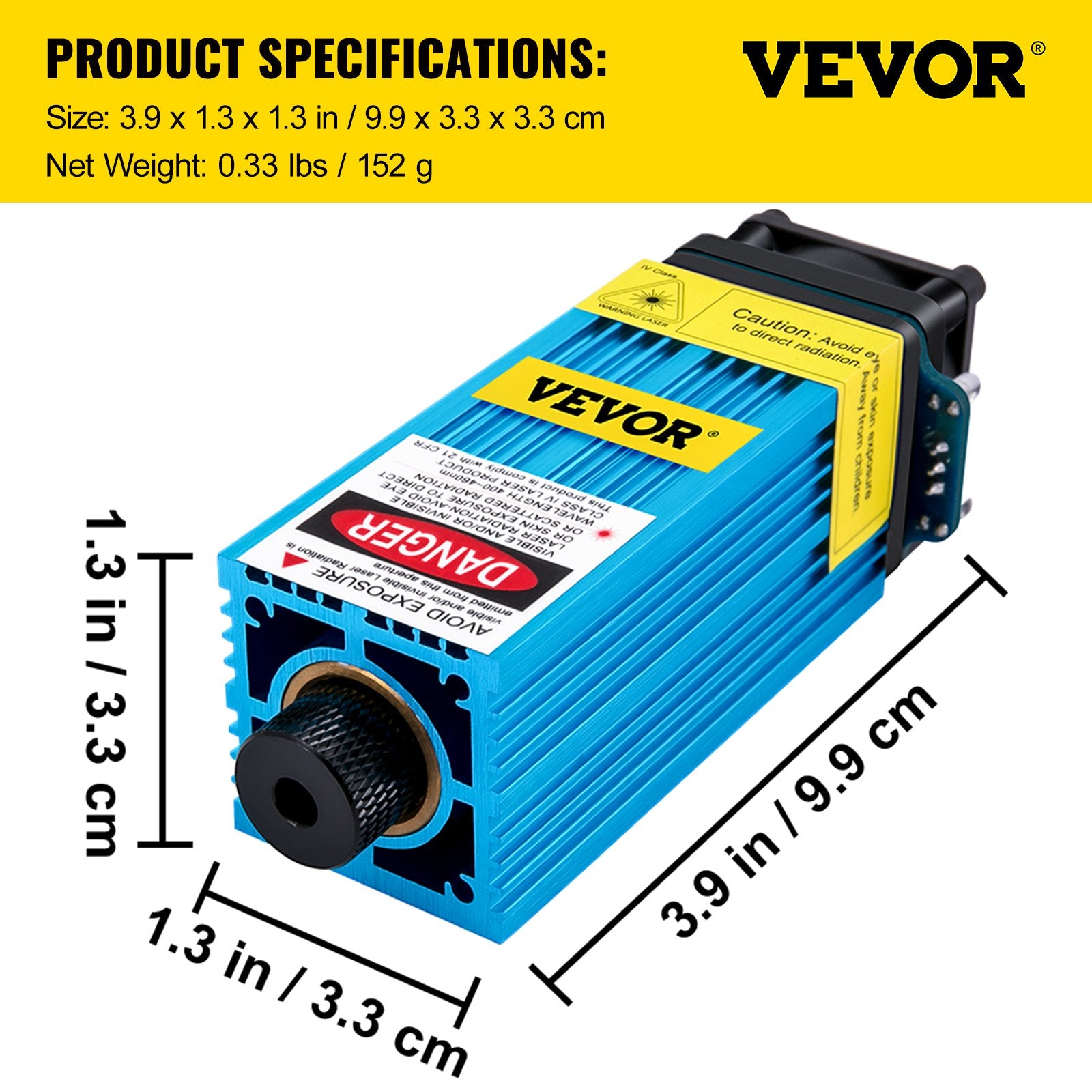

    Product Size
    3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm
