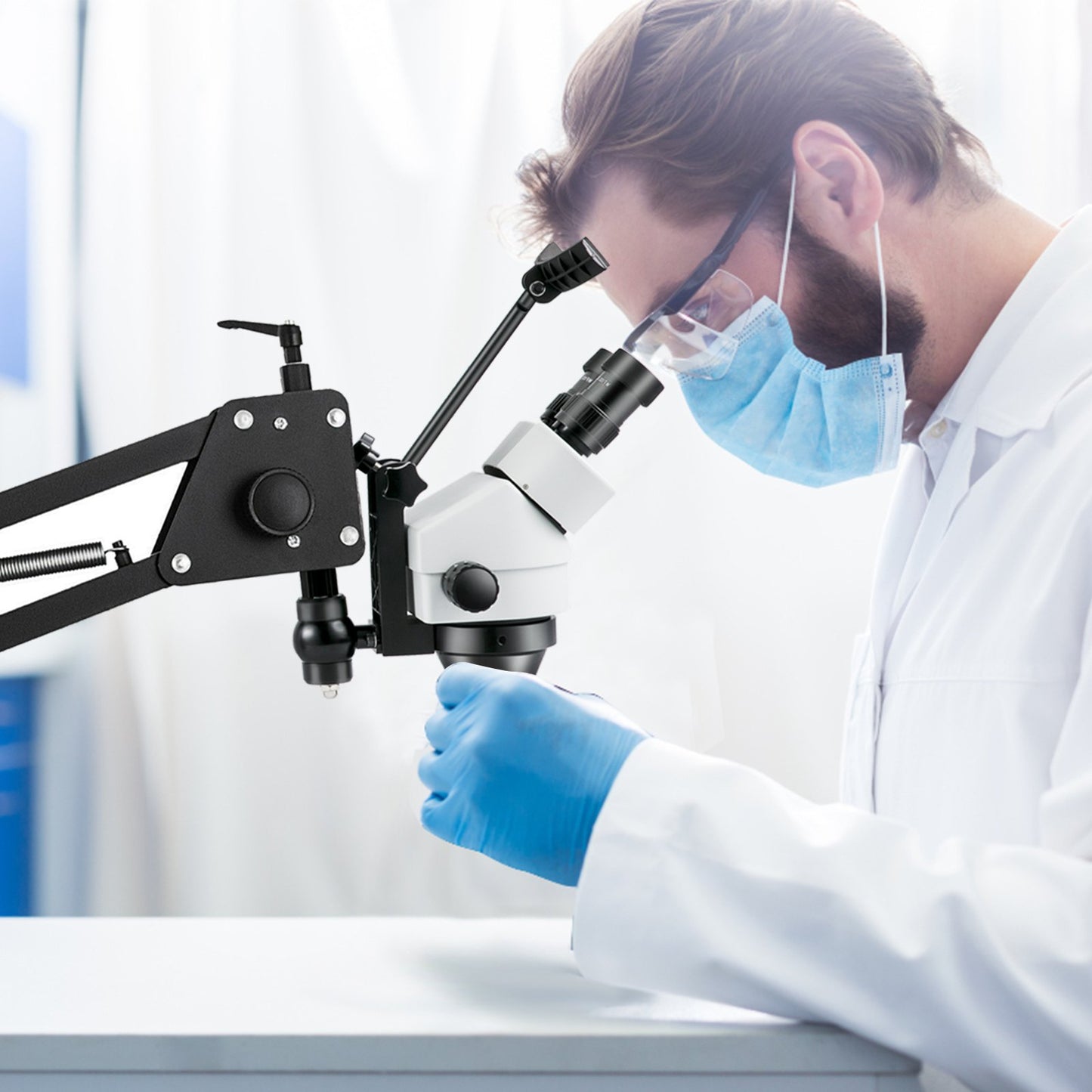

Micro Inlaid Mirror Multi-directional Micro-setting Microscope 76mm Lens Spring Bracket Jewelry Tools 7X-4.5X

Micro Inlaid Mirror Multi-directional Micro-setting Microscope 76mm Lens Spring Bracket Jewelry Tools 7X-4.5X

€432,00 EUR
€432,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • ?DETAILED PARAMETERS?- Continuous Zoom: 0.7X-4.5X, Long Working Distance: 95mm-300mm/ 3.7''-11.8”, Model: Jewelry Microscope Stand, Material: Hard Aluminum Alloy, Machine Objective Lens: 0.5X/165Mm, Machine Eyepiece: Wf10X/20Mm, Field Of View: 5.1-33 Mm (0.2-1.3 inch), Spin Angle: Horizontal ±15°, Straight: ±15°, Main Straight: 270°.
  • ?CONTINUOUS ZOOM & STEREOSCOPE SENSE?- The continuous zoom microscope lens is characterized by high-definition, large field of view, and strong stereoscopic sense. Wide-angle vision technology brings high resolution and a large field of view with easy operation.
  • ?POWERFUL PERFORMANCE?- The jewelry microscope inlaid stand is made of high rigidity aluminum alloy. With compact and stable chassis, it occupies a small space to store easily. A large zoom ratio & a wide field of view make the observation clearer and brighter.
  • ?USER-FRIENDLY DESIGN?- The unified headrest rest frame, as a user-friendly operating design, relieves neck fatigue. Aesthetic and practical cross-section universal joints are suitable for various heights & azimuth angles.
  • ?VARIOUS APPLICATION?- An essential tool for the micro-inlay jewelry industry, it’s able to meet all needs of operating requirements. Help you zoom in on the details of the jewelry and do better inlay work.
    • Continuous Zoom
    0.7X-4.5X
    Long Working Distance
    95mm-300mm / 3.7''-11.8''
    Model
    Jewelry Microscope Stand
    Material
    Hard Aluminum Alloy
    Bracket Hole
    85mm / 3.35''
    Control High Range
    60mm / 2.36''
    Straight
    ±15°
    Main Straight
    270°
    Machine Objective Lens
    0. X/165 mm
    Machine Eyepiece
    WF10X/20 mm
    Binocular Pupil Distance
    Pupil distance adjustment 54-76 mm (2.13-2.99 inch)
    Field of View
    5.1-33 mm (0.2-1.3 inch)
    Product Size
    68.58 cm x 53.34 cm (L x H)/27'' x 21''
    Manual
    Download Link
