Portable Laser Engraver 7.5"x6.7" Large Engraving Area 4.5W Laser Power

Portable Laser Engraver 7.5"x6.7" Large Engraving Area 4.5W Laser Power

Regular price €262,00 EUR
Regular price Sale price €262,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Powerful & High Performance: This laser engraver has a specialized motherboard with dual MCU processors, which are more powerful and ten times faster than some competitors in the market. You can adjust the distance between the laser engraving spot and the module by adjusting the focusing knob on the module.
  • Fabulous Engraving Area: This laser engraver machine has a 190 x 170 mm open-frame working area for cutting and engraving. It does excellent cuts and has very detailed abilities when it comes to engraving. In addition, the widened base makes the engraving process more stable. What’s more, the borderless design with one arm outstretched makes it more flexible.
  • Perfect Compatible System: This wood laser engraving machine has strong compatibility. It supports various operating systems (Windows 7 / 8 / 10 / 11, iOS, Android). It also supports the latest GRBL f1.1 firmware, VevorWorks, LaserGRBL, Lightburn software. So it’s convenient for you to control with no effort.
  • Security Protection: When the wood engraving machine is running, the built-in gyroscope will record the working position at the beginning. In the event of an accidental touch or machine shift, the device will automatically stop working to avoid any mistakes. It also has a built-in temperature sensor to avoid the laser module from overheating.
  • Versatile Use: This laser cutter can engrave various materials, like wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, and mirror stainless steel. It can cut cardboard, non-woven fabric, veneer, acrylic, thin plastic board, sponge, MDF, and leather.
  • Material
    Aluminum Alloy
    Engraving Area
    7.5 x 6.7 in / 190 x 170 mm
    Compatible Motherboard
    GRBL
    Maximum Speed
    6000 mm/min
    Supported Software
    VevorWorks, LightBurn, LaserGrbl
    Supported Operation System
    Windows7/8/10/11, iOS / Android
    Support Pixels
    3900 x 3900 px
    Supported Image Formats
    G-Code, NC, BMP, JPG, PNG, DXF, etc
    Firmware
    GRBL f1.1
    Output Power
    4.5W
    Voltage
    220V
    Min Focus Spot Size
    0.002 x 0.002 in / 0.005 x 0.005 mm
    Power Adjustment Method
    PWM
    PWM Input
    3.3-5V 0-180kHz
    Interface
    2.54 4PIN
    Dot Pitch
    0.002 in / 0.06 mm
    Best Carving & Depth
    ? 0.31 in / 8 mm
    Wave Length
    450 nm
    Light Source
    LD+C-Lens
    Net Weight
    3.17 lbs / 1.44 kg
    Laser Engraving Module Size
    1.57 x 1.3 x 4.25 in / 40 x 33 x 108 mm

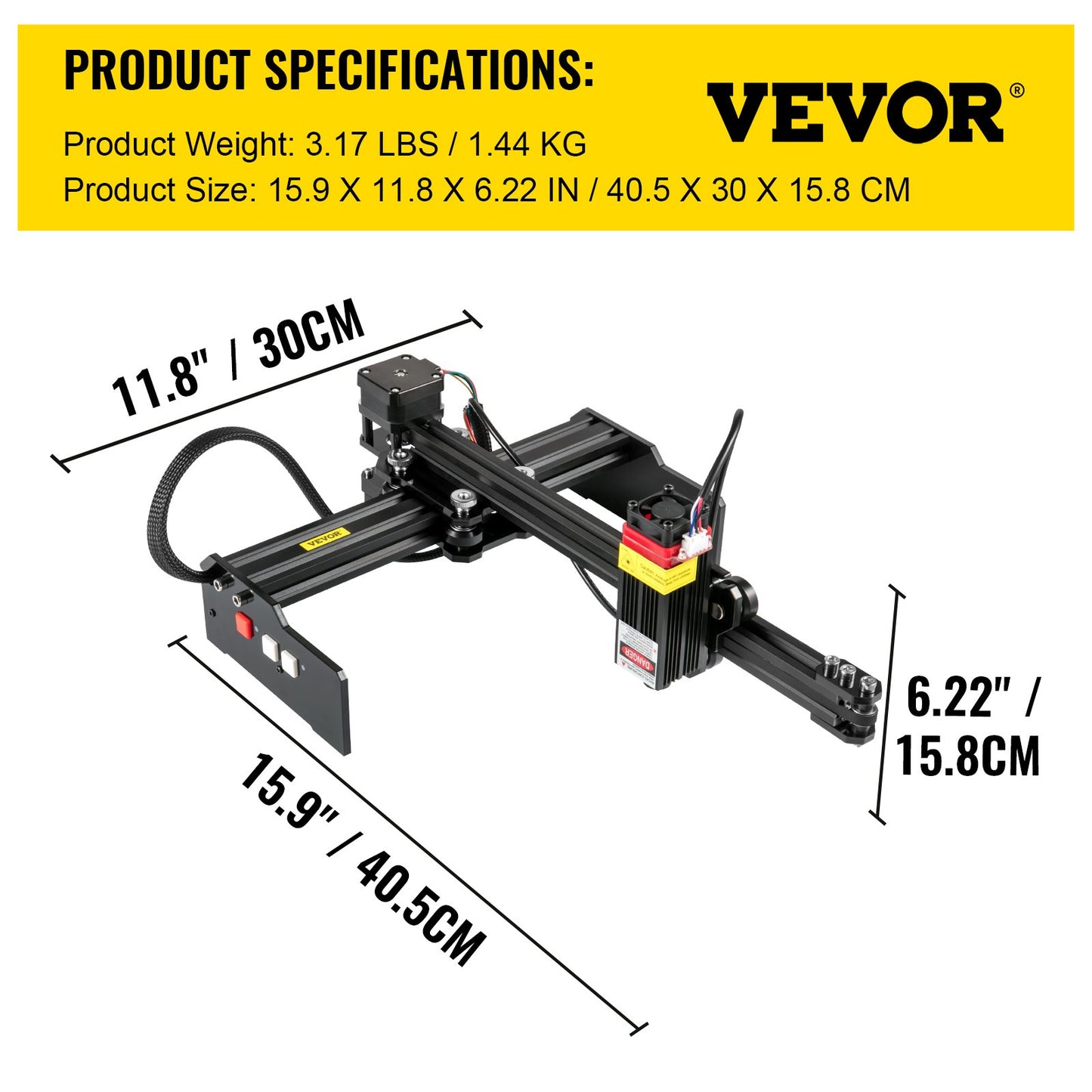

    Product Size
    15.9 x 11.8 x 6.22 in / 405 x 300 x 158 mm
