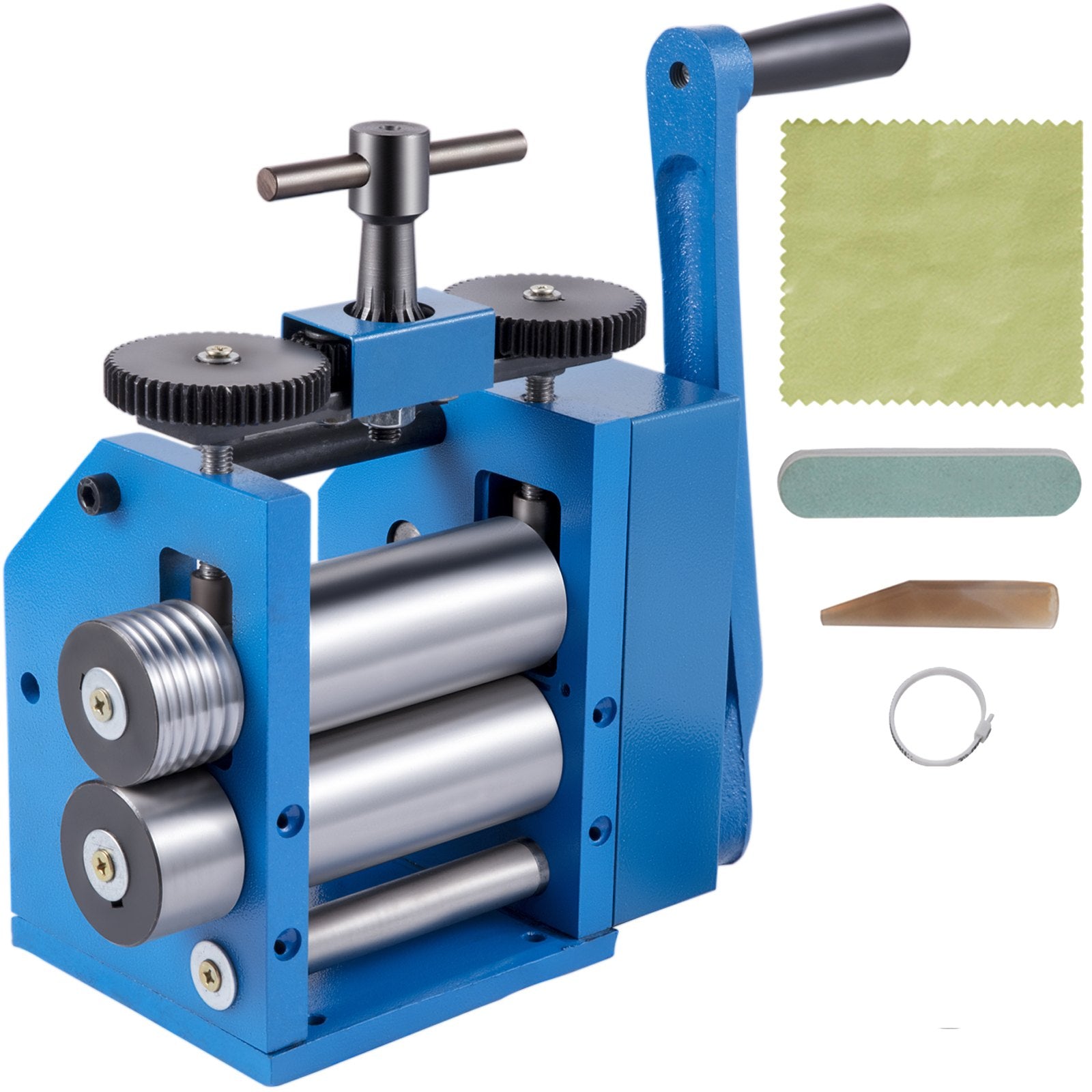

Rolling Mill 4.4"/112mm Jewelry Rolling Mill Machine Gear Ratio 1:2.5 Wire Roller Mill 0.1-7mm Press Thickness Manual Combination Rolling Mill w/ Iron Roller for Jewelry Sheet Semicircle Pattern

Rolling Mill 4.4"/112mm Jewelry Rolling Mill Machine Gear Ratio 1:2.5 Wire Roller Mill 0.1-7mm Press Thickness Manual Combination Rolling Mill w/ Iron Roller for Jewelry Sheet Semicircle Pattern

€275,00 EUR
€275,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • ?TWO-IN-ONE ROLLING MILL? - The rolling mills, with two-in-one performance, can press gold and silver into multiple sizes of the sheet and semicircle. Its rollers are also easy to change to satisfy your different requirements, a necessary machine for jewelry processing.
  • ?ADJUSTABLE PRESS THICKNESS? - The distance between the rollers can be precisely adjusted from 0.1 mm to 7 mm through the T-shape Bar. With a reduced gear ratio of 1:2.5, the roller makes one complete turn for every two and a half turns of the handle, relieving the amount of force needed to operate the wire roller mill.
  • ?DURABLE CAST IRON & STEEL? - This jewelry rolling mill machine comes with a cast-iron frame and chrome steel forged rollers for sturdiness and long service life. The blue powdered coating on the surface provides good wearability and corrosion resistance to enable the device to work steadily.
  • ?PREMIUM DETAIL & ACCESSORY? - The design of the ergonomic handle and mounting holes makes the operation more labor-saving. Besides, for your convenience, we provide you with complete accessories. The silver cloth, silver bar, and agate knife help you clean and polish the processed metals in a few seconds.
  • ?MULTIPLE USAGE SCENARIOS? - Our manual rolling mill machine is designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal. It is an ideal option for both jewelers and craftspeople to create your handicraft works.
    • Model
    Smooth-slot Rolling Mill
    Gear Ratio
    1
    Press Smooth Sheet
    4.4" / 112 mm
    Press Semicircle
    0.08" / 2 mm; 0.1" / 2.5 mm; 0.12" / 3 mm; 0.14" / 3.5 mm; 0.18" / 4.5 mm; 0.2" / 5 mm; 0.3" / 7.5 mm; 0.35" / 9 mm; 0.4" / 10 mm
    Min. Press Thickness
    0.004" / 0.1 mm
    Max. Press Thickness
    0.28" / 7 mm
    Material
    Cast Iron & Chrome Steel
    Roller Dimension
    4.4" x 1.9" / 112 x 48 mm

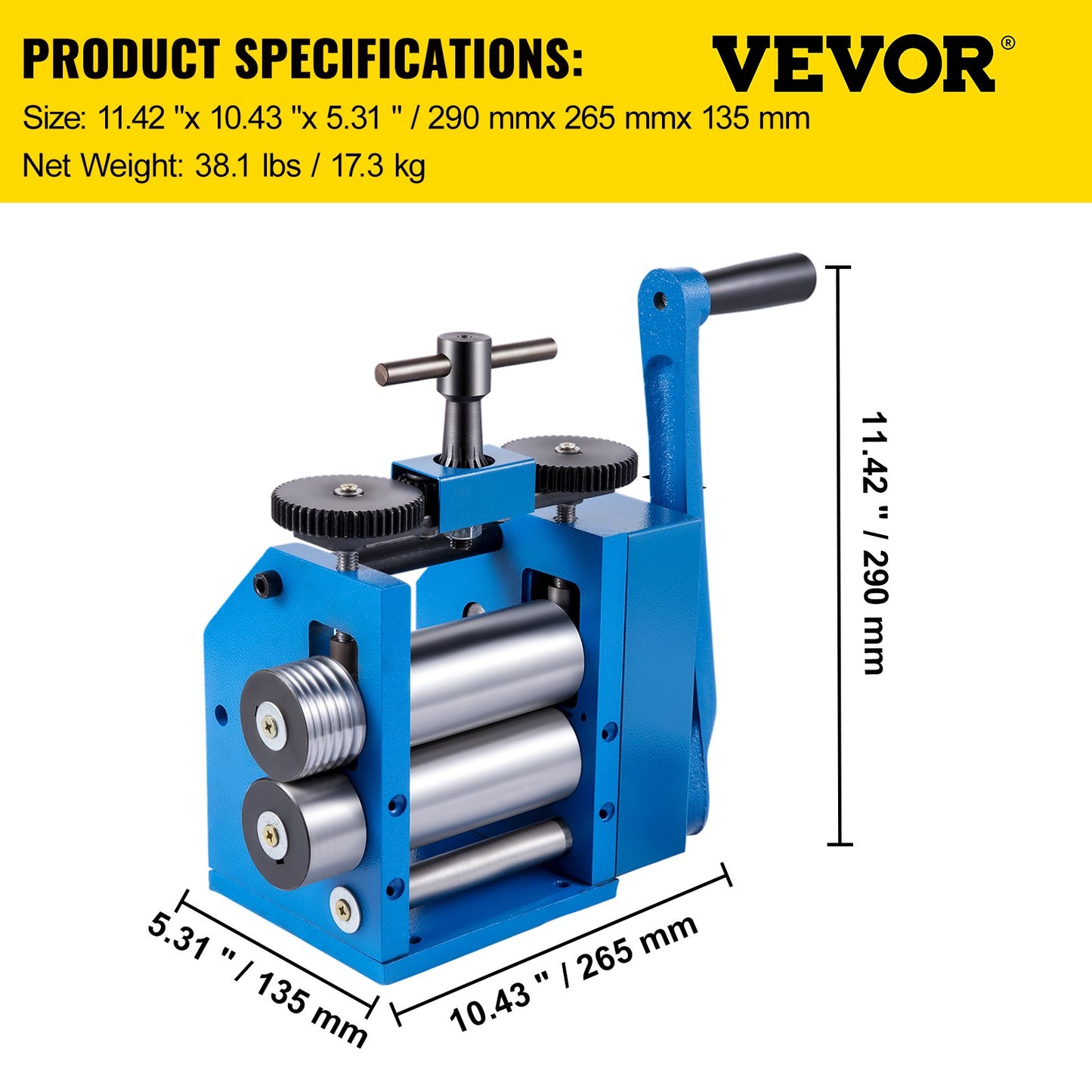

    Item Dimension
    10.43" x 5.31" x 11.42" / 26.5 x 13.5 x 29 cm
    Weight
    38.1 lbs / 17.3 kg
